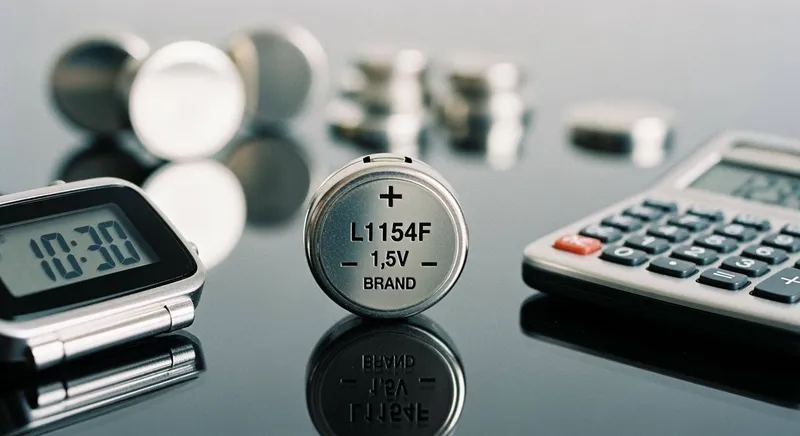

Defining the L1154F Battery for Electronics
The L1154F battery is a common 1.5-volt alkaline button cell. This button battery is a frequently used battery. Th
The L1154F battery is a common 1.5-volt alkaline button cell. This button battery is a frequently used battery. The L1154F battery has standard dimensions for easy identification.
Quick Specs for the L1154F battery:
- Dimensions: 11.6mm x 5.4mm
- Chemistry: Alkaline
The L1154F battery name is just one of many for this popular battery cell. Finding a replacement L1154F battery is simple. This L1154F battery is a reliable button battery. The L1154F battery is a great battery.
Key Takeaways
- The L1154F battery is a common 1.5-volt alkaline button cell. It powers many small electronic devices.
- The L1154F battery has other names like LR44 and AG13. These batteries are the same and work as replacements.
- Silver-oxide batteries (357/SR44) are better for devices needing steady power, like watches. They last longer than alkaline batteries.
L1154F Battery Specifications
Understanding the L1154F battery specifications is key to selecting the right power source. These specifications detail the battery's primary features and reliable performance capabilities. Let's explore the technical details of this widely used button battery.
Chemistry and Voltage
The L1154F battery is an alkaline cell with a nominal voltage of 1.5 volts. Its chemistry relies on a reaction between manganese dioxide and zinc, providing consistent power for various electronic devices. The L1154F battery is known by several standard codes. International organizations assign these codes to ensure universal identification.
| Designation Type | Code |
|---|---|
| IEC Code | LR44 |
| ANSI Code | 1166A |
These designations confirm that the L1154F battery meets global standards for this type of alkaline button battery.
Dimensions and Physical Meaning
The physical dimensions are a crucial part of the L1154F battery specifications. This cell measures 11.6mm in diameter and 5.4mm in height. The 'F' in the L1154F name simply indicates a standard flat-bottom cell, a common design feature that does not alter its performance. Manufacturers adhere to strict tolerances, typically within ±0.2mm for both diameter and thickness, ensuring a perfect fit in your device.
Capacity and Performance
The L1154F battery delivers reliable performance for low-drain devices. A key feature of its performance is its capacity, which is typically around 160mAh. This capacity allows for a long service life in many common applications. The alkaline chemistry of the L1154F battery provides a stable voltage output during most of its discharge cycle. Additionally, this button battery is known for its good leak resistance, one of its most important features for protecting sensitive electronics. This reliable performance makes the L1154F a widely used battery.
Common Applications
The primary features of the L1154F battery make it suitable for a wide range of compact electronics. Common uses for this widely used battery include:
- Calculators
- Digital thermometers
- Laser pointers
- Small electronic toys
- Watches
- Medical tools like glucose meters
These common applications rely on the simple, direct power the L1154F battery provides. While this button battery is perfect for these devices, the world of advanced electronics demands more complex solutions. For instance, in the integrated circuit (IC) industry, companies like Nova Technology Company (HK) Limited, a HiSilicon-authorized solutions partner, specialize in sophisticated power management, chip-level integration, and system design. Such expertise is essential for powering complex systems, a sharp contrast to the straightforward power needs of the various electronic devices that use an L1154F battery.
L1154F Battery Equivalent Guide
Finding an L1154F battery equivalent can seem confusing due to the many names used for this cell. However, most of these names refer to the exact same alkaline battery. This guide will help you understand the common equivalents and choose the right replacement for your L1154F battery. Knowing the correct L1154F battery equivalent ensures your devices continue to function properly.
L1154F vs. LR44
The most common L1154F battery equivalent is the LR44. For all practical purposes, the L1154F and the LR44 are the same battery. The designation "LR44" is the official code from the International Electrotechnical Commission (IEC). This makes it the most universally recognized name. If a device requires an L1154F battery, an LR44 alkaline battery is a direct, 100% compatible replacement. You can confidently purchase an LR44 battery as a substitute.
L1154F vs. AG13
The AG13 is another direct alkaline battery equivalent for the L1154F battery. The different names for this button battery come from various international standards and manufacturer preferences. Understanding these origins clarifies why so many codes exist for the same alkaline cell.
- AG13: This is a popular designation used by manufacturers, particularly in Asia.
- LR44: This is the standard IEC code, used globally.
- A76: This is the American National Standards Institute (ANSI) code for the same battery.
Therefore, an AG13 is a perfectly suitable L1154F battery equivalent. It shares the same chemistry, voltage, and physical dimensions as the L1154F.
Alkaline vs. Silver-Oxide (357/SR44)
While alkaline batteries like the L1154F are common, you may also find silver-oxide equivalents. The most frequent silver-oxide names are 357 and SR44. These are often interchangeable with the L1154F battery, but they offer different performance characteristics.
A silver-oxide cell has a unique chemical makeup.
- Chemistry: Silver Oxide
- Positive Electrode: Silver Oxide
- Negative Electrode: Zinc
- Electrolyte: Alkaline
This chemistry gives the silver-oxide battery a key advantage in certain devices.
💡 Pro Tip: When to Choose Silver-Oxide Silver-oxide batteries (357/SR44) are recommended for precision electronics like watches, medical instruments, and professional cameras. They maintain a very stable voltage of 1.55V throughout their life. This flat discharge curve is critical for devices that need consistent power for accurate operation. An alkaline L1154F battery, in contrast, will experience a gradual voltage drop as it drains.
The superior performance of a silver-oxide battery also includes a longer lifespan. It is a premium battery equivalent.
The table below summarizes the key equivalents for the L1154F battery.
| Common Name | Chemistry | Nominal Voltage | Direct Equivalent? |
|---|---|---|---|
| L1154F | Alkaline | 1.5V | - |
| LR44 | Alkaline | 1.5V | Yes |
| AG13 | Alkaline | 1.5V | Yes |
| 357 | Silver-Oxide | 1.55V | High-Performance |
| SR44 | Silver-Oxide | 1.55V | High-Performance |
Ultimately, choosing the right L1154F battery equivalent depends on your device's needs. For most general-purpose electronics, a direct alkaline equivalent like an LR44 or AG13 is perfect. For high-precision or medical devices, a silver-oxide cell is the superior choice.
You can now confidently identify the L1154F as a 1.5-volt alkaline button cell. The most important takeaway is that this common battery is directly interchangeable with an LR44 or AG13 battery. Finding a replacement battery is simple. This button battery powers many devices, making proper battery care vital.
Battery Disposal Tip: Always recycle this button battery. Proper battery disposal protects our environment. Never incinerate a battery or discard a battery in household trash. Your local battery recycling program can handle this battery.
FAQ
What is the shelf life of an L1154F battery?
An alkaline button battery typically has a shelf life of about 3 years. Proper storage in a cool, dry place helps every battery maintain its charge longer.
Is this button battery RoHS compliant?
Yes, this battery is RoHS compliant. The RoHS directive restricts hazardous substances in electronics. This compliance makes the battery safer for you and the environment.
Can I use a silver-oxide battery instead?
Yes! A silver-oxide battery is a premium replacement. This type of battery offers a more stable voltage, making it a better battery for precision devices like watches.
