Series
JZV
Ratings
AEC-Q200
Impedance
160 mOhms
Packaging
Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|

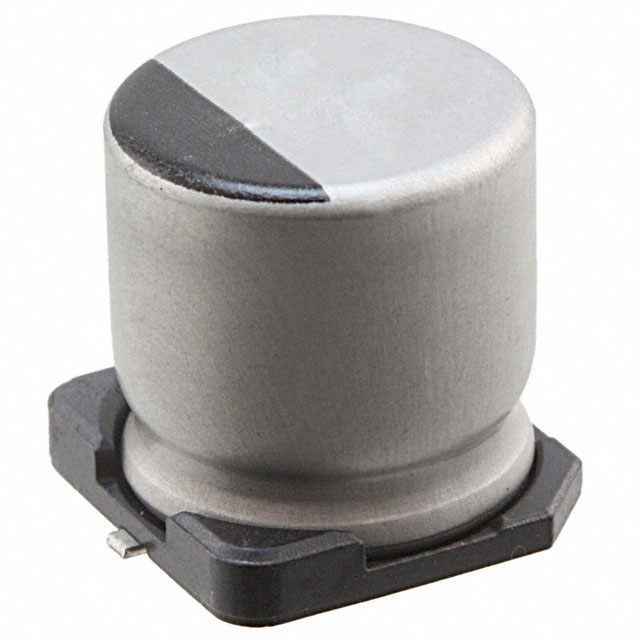

| Category | Aluminum Electrolytic Capacitors |
| Manufacturer | Rubycon |
| Series | JZV |
| Ratings | AEC-Q200 |
| Impedance | 160 mOhms |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 470 µF |
| Part Status | Active |
| Applications | Automotive, High Temperature Reflow |
| Lead Spacing | - |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 16 V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| ESR (Equivalent Series Resistance) | - |
