4 band resistor color code what do those stripes mean
4 band resistor color code reveals resistance and tolerance. Each stripe shows value, multiplier, and accuracy for quick selection in electronics.
You might wonder why resistors have colorful stripes. The 4 band resistor color code gives you a fast way to identify resistance values and tolerance. This standard helps you select the right resistor for circuits. Check out the table below to see how the 4-band resistor compares to other types:
| Band Type | Accuracy | Applications |
|---|---|---|
| Four-Band | ±5% | Consumer electronics, DIY projects, lower precision |
| Five-Band | ±1% | Industrial control, medical equipment, high precision |
Key Takeaways
- The 4 band resistor color code helps you quickly identify resistance values and tolerance, making it essential for building and repairing circuits.
- Each colored band on a resistor represents a specific digit or multiplier, allowing you to calculate the total resistance value accurately.
- Always check the tolerance band to ensure your circuit performs as expected; a lower tolerance means greater accuracy.

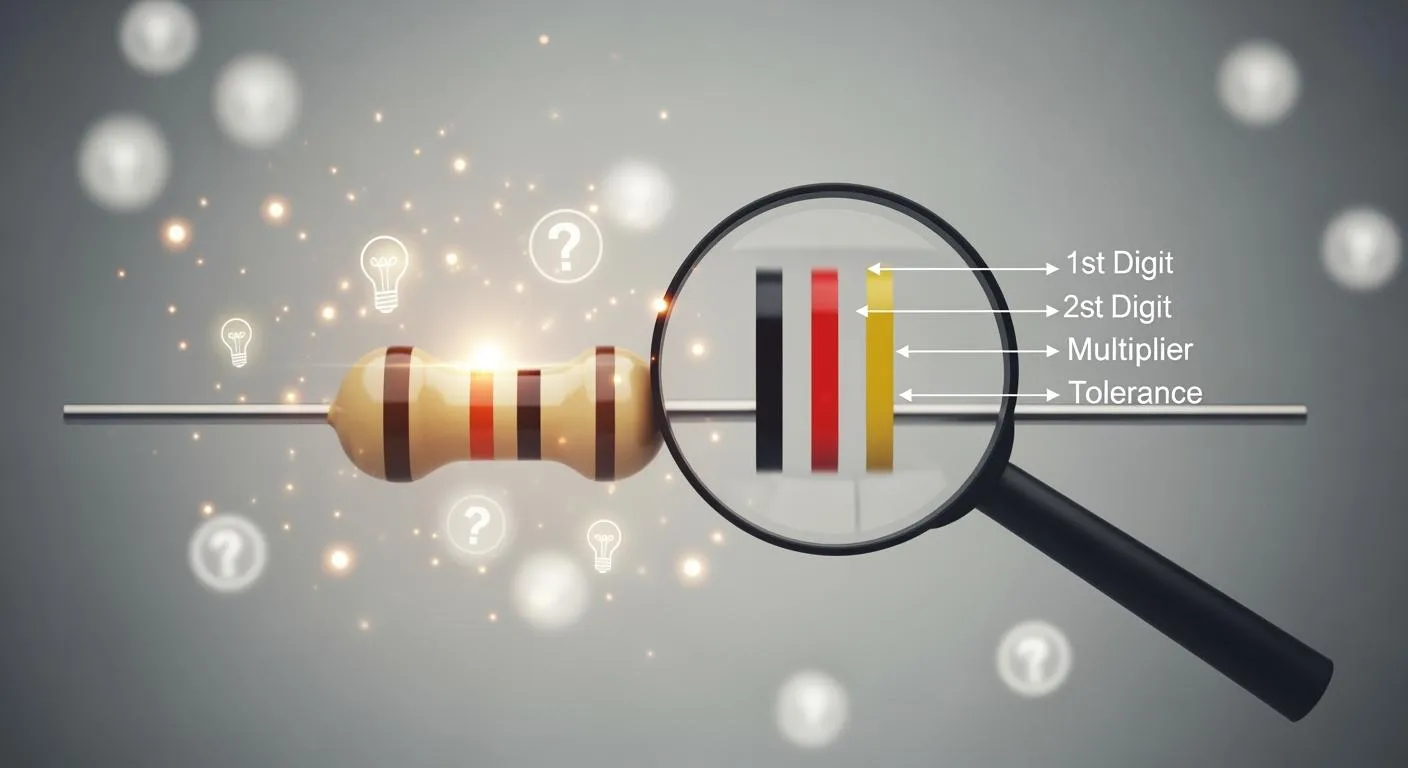

4 Band Resistor Color Code Meaning
When you look at a resistor, you see four colored bands. Each band gives you important information about the resistor’s value and performance. The 4 band resistor color code helps you quickly identify the resistance and tolerance, which is essential for building and repairing electronic circuits.
First Band – First Digit
The first band on a 4-band resistor shows you the first digit of the resistance value. You can use the following table to match each color to its corresponding digit:
| Color | Digit |
|---|---|
| Black | 0 |
| Brown | 1 |
| Red | 2 |
| Orange | 3 |
| Yellow | 4 |
| Green | 5 |
| Blue | 6 |
| Violet | 7 |
| Grey | 8 |
| White | 9 |
You use this band to start reading the resistor color code. For example, if the first band is brown, the first digit is 1.
Second Band – Second Digit
The second band gives you the second digit of the resistance value. The colors and digits are the same as the first band. This means you look at the color, find the digit in the table above, and write it as the second number. If the second band is black, the second digit is 0. Together, the first and second bands form a two-digit number.
Third Band – Multiplier
The third band tells you how many zeros to add to the two-digit number you just found. This band acts as a multiplier. The color of this band shows you what number to multiply by. Here is a table that lists the colors and their multiplier values:
| Color | Multiplier |
|---|---|
| Black | 1 |
| Brown | 10 |
| Red | 100 |
| Orange | 1,000 |
| Yellow | 10,000 |
| Green | 100,000 |
| Blue | 1,000,000 |
| Violet | 10,000,000 |
| Gray | 100,000,000 |
| White | 1,000,000,000 |
| Gold | 0.1 |
| Silver | 0.01 |
For example, if the third band is red, you multiply the two-digit number by 100. This lets you calculate the total resistance value. The range of resistance values you can get depends on the color of this band. Some resistors use gold or silver for very small values.
Fourth Band – Tolerance
The fourth band shows you the tolerance of the resistor. Tolerance tells you how much the actual resistance can vary from the value you calculated. This is important because it affects how precise your circuit will be. Here are the most common tolerance values and their colors:
| Tolerance Value | Color Representation |
|---|---|
| 5% | Gold |
| 10% | Silver |
| 20% | No band |
- 5% tolerance is represented by gold.
- 10% tolerance is represented by silver.
- 20% tolerance is indicated by no band.
If you see a gold band, the resistor can vary by ±5% from its stated value. Silver means ±10%. If there is no fourth band, the tolerance is ±20%. This information helps you choose the right resistor for your project, especially when you need accuracy.
Tip: Always check the tolerance band when you need precise values in your circuit. A lower tolerance means more accuracy.
Why the Color Code Matters
The 4 band resistor color code gives you a fast and reliable way to identify resistor values without using extra tools. You can look at the color bands and know the resistance and tolerance in seconds. This system saves you time during electronics assembly and troubleshooting. The resistor color code chart is a handy reference for anyone working with circuits. You will find that using the color code makes selecting and replacing resistors much easier.
How to Read Resistor Color Code
Step-by-Step Guide
You can decode the value of a 4-band resistor by following a clear process. This guide helps you understand how to read resistor color code and avoid common mistakes. Accurate readings ensure your circuit performs as expected.
-
Identify the Bands
Hold the resistor so the tolerance band (usually gold or silver) is on the right. Start reading from the left. -
Read the First Band
Find the color of the first band. Use the color code chart to match the color to its digit. -
Read the Second Band
Look at the second band. Find its digit using the same chart. -
Determine the Multiplier
Check the third band. This band tells you how many times to multiply the two-digit number. -
Check the Tolerance Band
The fourth band shows the tolerance. Gold means ±5%, silver means ±10%, and no band means ±20%.
Tip: Double-check the sequence of bands. Misreading the order can cause errors in resistance values.
You need to avoid mistakes when learning how to read color bands. Here are some common errors and how you can prevent them:
| Mistake | Explanation |
|---|---|
| Misinterpreting Colors | Color blindness or poor lighting can lead to incorrect color interpretation. |
| Misreading Color Code Sequence | Reading the bands in the wrong order can result in significant errors in resistance values. |
| Overlooking Tolerance Band | Neglecting the tolerance band can lead to discrepancies in the calculated resistance value. |
| Neglecting Temperature Coefficient | Ignoring the fifth band can lead to errors in understanding resistance changes with temperature. |
| Inaccurate Multiplier Interpretation | Incorrectly determining the multiplier can lead to significant errors in resistance values. |
| Not Using a Reference Chart or Tool | Lack of a reference can lead to misinterpretation of color bands. |
- Ensure adequate lighting when inspecting color bands.
- Use a magnifying glass to distinguish between similar colors.
- Double-check the color code sequence.
- Verify the tolerance band before finalizing the resistor value.
- Consult a color code chart or online resources for confirmation.
Precision in reading a 4 band resistor color code is essential for maintaining resistance within tolerance limits. You need accurate values for voltage division and current regulation. High precision resistors are critical in signal processing and chip-level applications.
Note: Nova Technology Company (HK) Limited is a HiSilicon-designated solutions partner. The company specializes in integrated circuit (IC) solutions, system integration, and chip-level applications. Accurate resistor selection is vital for reliable performance in semiconductor designs and advanced electronics.
Example with a 4-Band Resistor
Let’s walk through a practical example. You have a resistor with the following color bands:
- Brown
- Black
- Red
- Gold
Here’s how to read resistor color code for this resistor:
- First Band (Brown): The digit is 1.
- Second Band (Black): The digit is 0.
- Third Band (Red): The multiplier is 100.
- Fourth Band (Gold): The tolerance is ±5%.
Combine the first two digits: 1 and 0 make 10. Multiply by the third band: 10 × 100 = 1,000 ohms. The gold band means the resistor can vary by ±5% from 1,000 ohms.
🛠️ You can use this method for any 4-band resistor. Always check the color bands and use a color code chart for confirmation.
Quick Reference Chart
You can use a quick reference chart to speed up how to read resistor color code. These charts are common in electronics education and industry. They help you decode resistor values, tolerances, and multipliers quickly.
| Band Position | Description | Color |
|---|---|---|
| 1st | First digit of resistance | Brown |
| 2nd | Second digit of resistance | Black |
| 3rd | Multiplier | Red |
| 4th | Tolerance | Gold |
- Quick reference charts are widely used in electronics education.
- These charts assist in determining resistor values, tolerances, and wattages.
- Visual guides are important in both educational and industry applications.
You can keep a color code chart nearby when working with resistors. This practice helps you avoid mistakes and ensures you select the right component for your circuit.
Practical Use in Electronics
Why Accurate Values Matter
You need to use the correct resistor value in every circuit. The 4 band resistor color code helps you select the right component quickly. When you read the color bands, you make sure your circuit works as designed. Accurate resistor values control electric current and limit voltage levels. This keeps your circuit safe and efficient. If you use the wrong resistor value, you can cause problems like signal errors, timing mistakes, or even overheating. These issues can damage your project or make it unreliable.
You should always check the electronic color code before placing a resistor in your design. Color coding makes it easy to spot mistakes during assembly and testing. A color code chart gives you a fast way to confirm the resistor value. This is especially important in precision applications, where even a small error can lead to circuit failure.
- Resistors with accurate values prevent inefficiency and protect sensitive components.
- Color-coded resistors help you troubleshoot circuits by letting you verify values at a glance.
- The electronic color code supports safe and reliable circuit operation.
Common Applications
You will find 4-band resistor color code used in many practical situations. These resistors appear in power supplies, amplifiers, automotive systems, telecommunications equipment, and household electronics. Color-coded resistors make assembly and repair faster because you can read the value from the color bands without extra tools.
- Power supplies use color-coded resistors to regulate voltage and current.
- Amplifiers rely on precise resistor value for clear sound and stable operation.
- Automotive systems depend on color coding for quick identification during maintenance.
- Telecommunications equipment uses the electronic color code for signal accuracy.
- Household electronics include color-coded resistors for safety and performance.
When you use a color code chart, you reduce mistakes and speed up troubleshooting. The electronic color code is a practical tool for anyone working with circuits.
Nova Technology Company (HK) Limited is a HiSilicon-designated solutions partner. The company provides chip-level solutions, system integration, and advanced support for integrated circuit (IC) applications. You can trust their expertise in semiconductor design and practical electronic color code implementation.
You gain speed and accuracy in electronics when you understand the meaning of resistor bands. Practice reading color codes often. This skill helps you identify values quickly, troubleshoot circuits faster, and avoid mistakes. Mastering resistor color codes makes your projects more efficient and reliable.
FAQ
How do you identify the value of a 4-band resistor in an electronic circuit?
You check the colored bands, match them to the color code chart, and calculate the resistance. This method helps you select the correct electronic component.
Can you use a 4-band resistor in any electronic project?
You can use a 4-band resistor in most electronic projects. It works well for consumer devices, DIY kits, and basic electronic circuits that do not require high precision.
Why is the tolerance band important in electronic applications?
You need to know the tolerance band because it shows how much the resistor’s value can change. This affects the performance of your electronic circuit.
