| Parameter | Value |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Function | Step-Up, Step-Up/Step-Down |
| Topology | Boost, Cuk, SEPIC |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel® |
| Output Type | Adjustable |
| Part Status | Active |
| Mounting Type | Surface Mount |

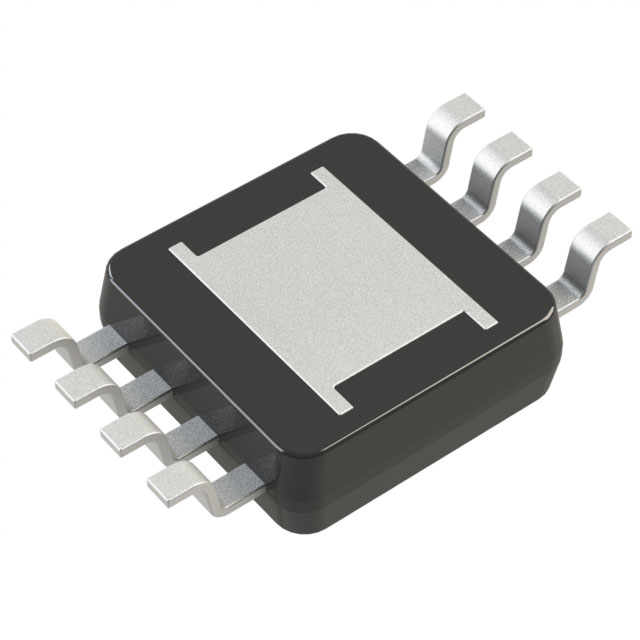

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Current - Output | 2A (Switch) |
| Number of Outputs | 1 |
| Base Product Number | LT3580 |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 200kHz ~ 2MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Synchronous Rectifier | No |
| Voltage - Input (Max) | 32V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Max) | 42V (Switch) |
| Supplier Device Package | 8-MSOP-EP |
| Voltage - Output (Min/Fixed) | 5V |
