Type

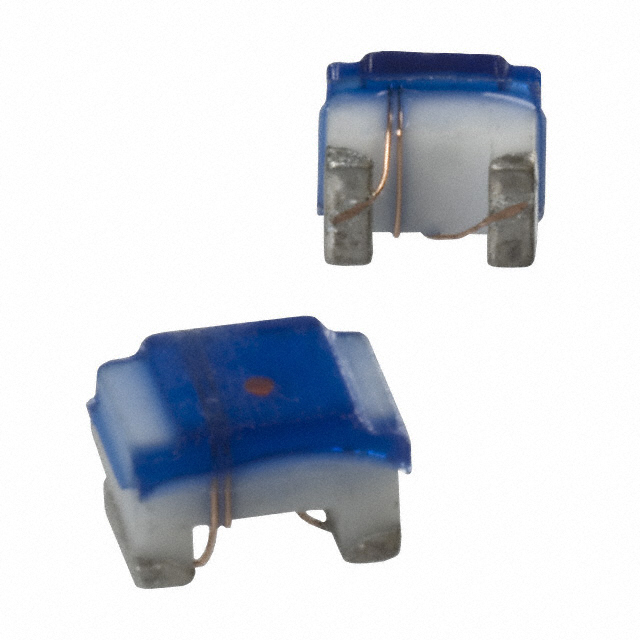

Drum Core, Wirewound
Series
PM0805
Q @ Freq
15 @ 1.5GHz
Packaging
Tape & Reel (TR) || Cut Tape (CT)
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Fixed Inductors |
| Manufacturer | Bourns Inc. |
| Type | Drum Core, Wirewound |
| Series | PM0805 |
| Ratings | - |
| Q @ Freq | 15 @ 1.5GHz |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 2.2 nH |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Base Product Number | PM0805 |
| DC Resistance (DCR) | 80mOhm Max |
| Current Rating (Amps) | 600 mA |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 0805 (2012 Metric) |
| Frequency - Self Resonant | 6GHz |
| Current - Saturation (Isat) | - |
| Inductance Frequency - Test | 250 MHz |
