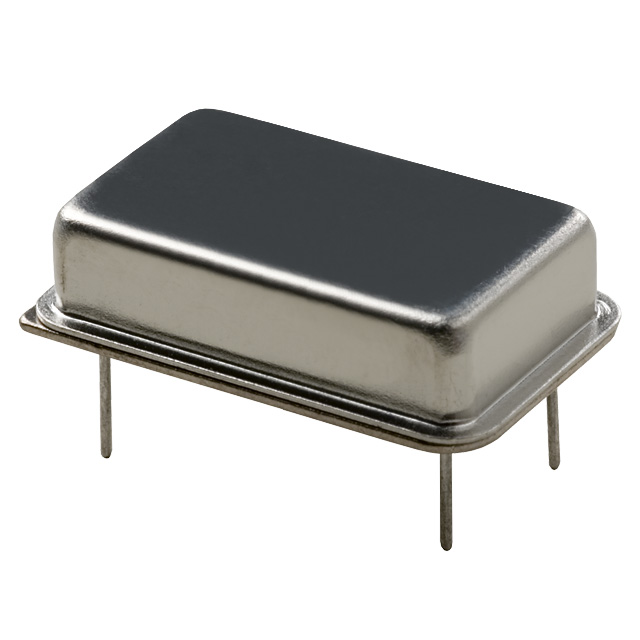

RoHS / ComplianceImages are for reference only
Type
XO (Standard)
Output
CMOS, TTL
Series
FIPO™ CPPL
Function
Enable/Disable, Standby
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Programmable Oscillators |
| Manufacturer | Cardinal Components Inc. |
| Type | XO (Standard) |
| Output | CMOS, TTL |
| Series | FIPO™ CPPL |
| Ratings | - |
| Function | Enable/Disable, Standby |
| Packaging | Tube |
| Part Status | Obsolete |
| Manufacturer | Cardinal Components Inc. |
| Mounting Type | Through Hole |
| Base Resonator | Crystal |
| Package / Case | 14-DIP, 4 Leads (Full Size, Metal Can) |
| Size / Dimension | 0.819" L x 0.520" W (20.80mm x 13.20mm) |
| Voltage - Supply | 5V |
| Programmable Type | Blank (User Must Program) |
| Frequency Stability | ±25ppm |
| Height - Seated (Max) | 0.200" (5.08mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply (Max) | 45mA |
| Available Frequency Range | 1 MHz ~ 133 MHz |
| Spread Spectrum Bandwidth | - |
| Frequency Stability (Total) | - |
| Current - Supply (Disable) (Max) | 20 µA |
