RPM
11000 RPM
Noise
54.0dB(A)
Width
5.50mm
Series
BSB
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|

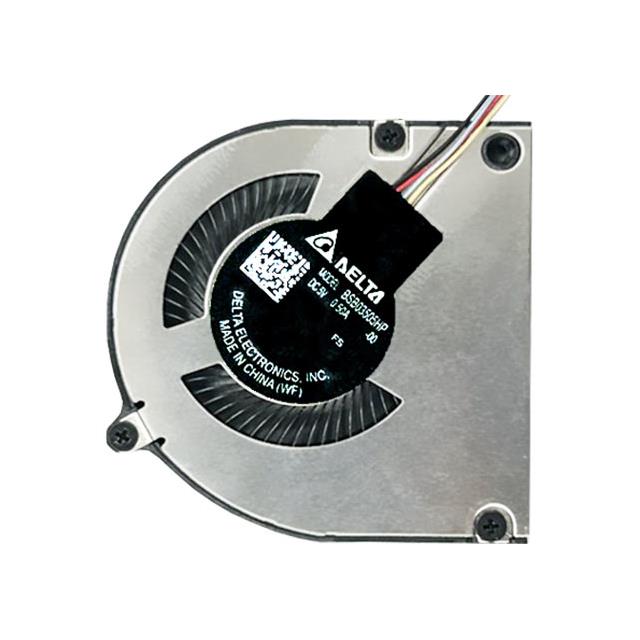

| Category | DC Brushless Fans (BLDC) |
| Manufacturer | Delta Electronics |
| RPM | 11000 RPM |
| Noise | 54.0dB(A) |
| Width | 5.50mm |
| Series | BSB |
| Weight | - |
| Air Flow | 2.1 CFM (0.059m³/min) |
| Fan Type | Blower |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Part Status | Active |
| Termination | 4 Position Rectangular Connector |
| Bearing Type | Sleeve |
| Power (Watts) | 1 W |
| Voltage Range | 2.5 ~ 5.5VDC |
| Approval Agency | - |
| Static Pressure | 1.181 in H2O (294.2 Pa) |
| Voltage - Rated | 5VDC |
| Lifetime @ Temp. | 30000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square/Rounded - 35mm L x 35mm H |
| Ingress Protection | - |
| Current Rating (Amps) | 0.270A |
| Operating Temperature | 32 ~ 140°F (0 ~ 60°C) |
