Type
Zener
Series
SMCG-HR
Packaging
Tape & Reel (TR)
Part Status
Active
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Type | Zener |
| Series | SMCG-HR |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |

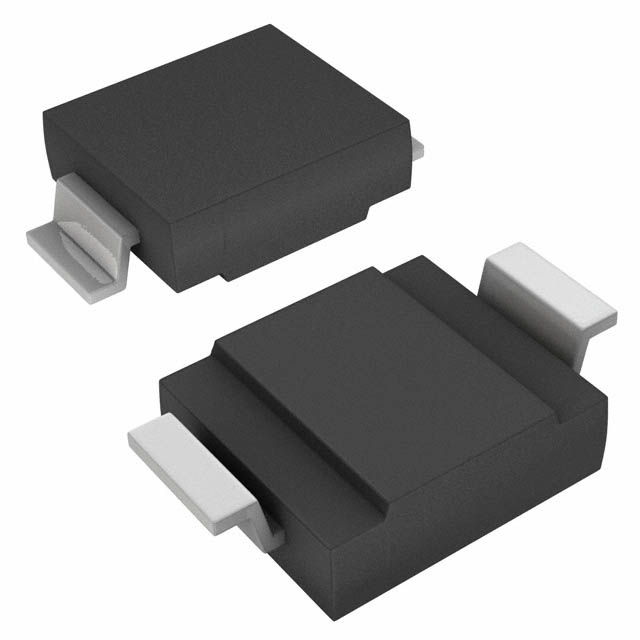

| Package / Case | DO-215AB, SMC Gull Wing |
| Power - Peak Pulse | 1500W (1.5kW) |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Power Line Protection | No |
| Capacitance @ Frequency | - |
| Supplier Device Package | DO-214AB (SMCG) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V |
| Voltage - Reverse Standoff (Typ) | 26V |
| Current - Peak Pulse (10/1000µs) | 35.7A |
