| Parameter | Value |
|---|---|

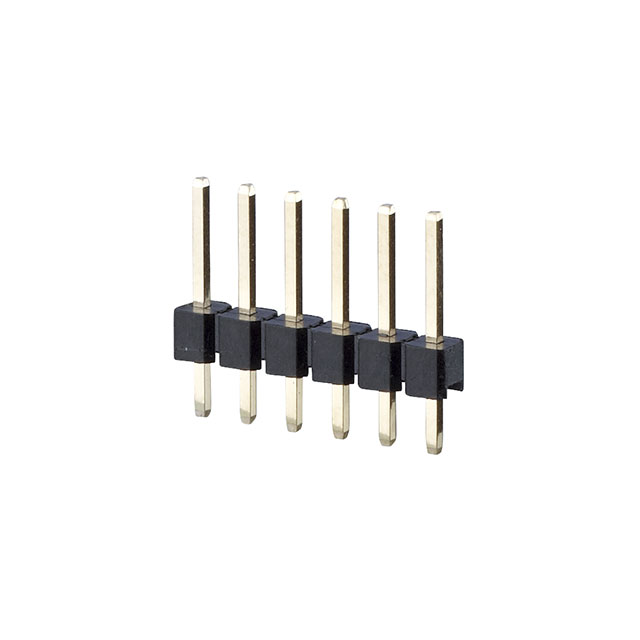

| Category | Headers, Male Pins |
| Manufacturer | METZ CONNECT USA Inc. |
| Style | Board to Board |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Copper Zinc |
| Insulation Color | Black |
| Insulation Height | 0.098" (2.50mm) |
| Ingress Protection | - |
| Base Product Number | PR20208V |
| Insulation Material | Polyethylene |
| Number of Positions | 8 |
| Row Spacing - Mating | - |
| Contact Finish - Post | - |
| Contact Length - Post | 0.118" (3.00mm) |
| Current Rating (Amps) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | 0.457" (11.61mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.240" (6.10mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash |
