Packaging
Bulk
Tolerance
±5%
Part Status
Active
Power - Max
500 mW
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Single Zener Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| Tolerance | ±5% |
| Part Status | Active |
| Power - Max | 500 mW |
| Mounting Type | Surface Mount |

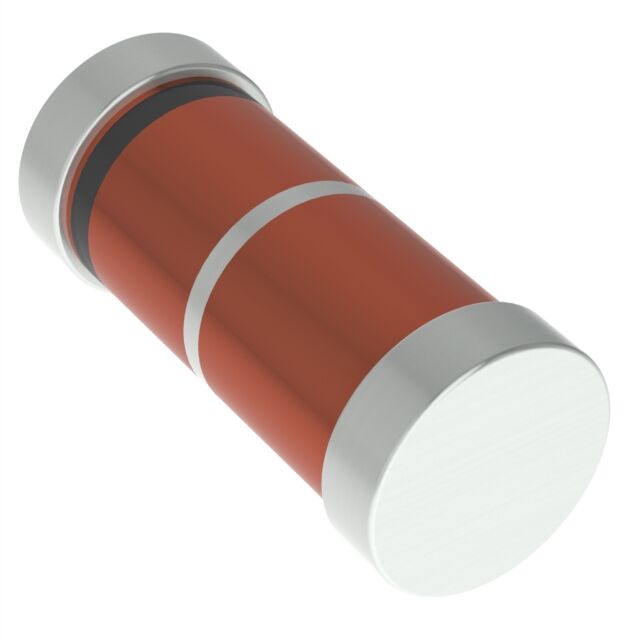

| Package / Case | DO-213AA |
| Base Product Number | 1N5536 |
| Impedance (Max) (Zzt) | 100 Ohms |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Supplier Device Package | DO-213AA |
| Voltage - Zener (Nom) (Vz) | 16 V |
| Current - Reverse Leakage @ Vr | 10 nA @ 14.4 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
