Type
DIP, 0.6" (15.24mm) Row Spacing
Series
110
Features
Open Frame
Packaging
Tube
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling

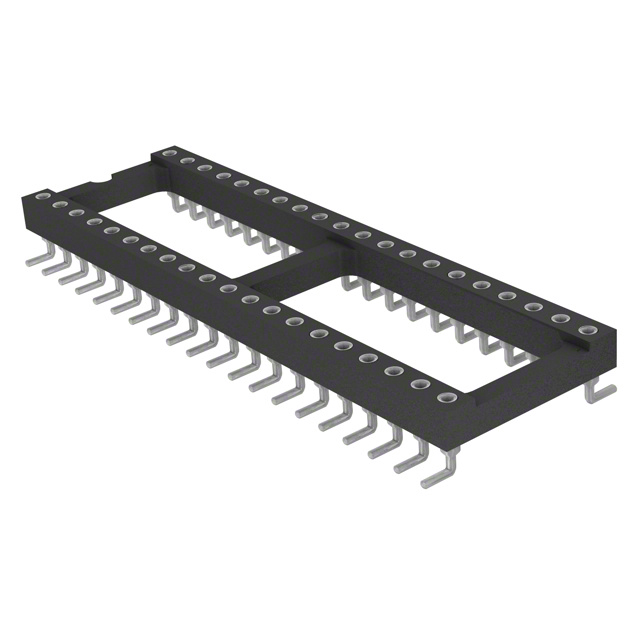

| Parameter | Value |
|---|---|
| Category | IC Sockets |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Type | DIP, 0.6" (15.24mm) Row Spacing |
| Series | 110 |
| Features | Open Frame |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact Resistance | - |
| Base Product Number | 110-93 |
| Contact Finish - Post | Tin-Lead |
| Current Rating (Amps) | 3 A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Brass Alloy |
| Termination Post Length | 0.125" (3.18mm) |
| Contact Material - Mating | Beryllium Copper |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Number of Positions or Pins (Grid) | 40 (2 x 20) |
