Style
Board to Board or Cable
Series
KK254, 6373
Packaging
Bulk
Shrouding
Shrouded - 1 Wall
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling

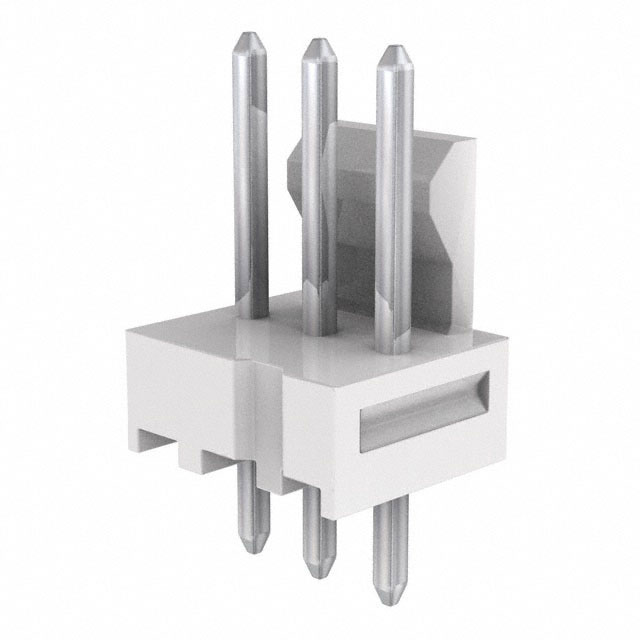

| Parameter | Value |
|---|---|
| Category | Headers, Male Pins |
| Manufacturer | Molex |
| Style | Board to Board or Cable |
| Series | KK254, 6373 |
| Features | - |
| Packaging | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Friction Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Brass |
| Insulation Color | White |
| Insulation Height | 0.322" (8.18mm) |
| Ingress Protection | - |
| Base Product Number | 002223 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 3 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.145" (3.68mm) |
| Current Rating (Amps) | - |
| Operating Temperature | - |
| Mated Stacking Heights | - |
| Overall Contact Length | 0.530" (13.46mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.260" (6.60mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
