Type
General Purpose
Series
IsoLoop®
Data Rate
110Mbps
Packaging
Tube
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Digital Isolators |
| Manufacturer | NVE Corp/Isolation Products |
| Type | General Purpose |
| Series | IsoLoop® |
| Data Rate | 110Mbps |
| Packaging | Tube |
| Technology | GMR (Giant Magnetoresistive) |
| Part Status | Active |
| Channel Type | Unidirectional |
| Mounting Type | Surface Mount |
| Isolated Power | No |

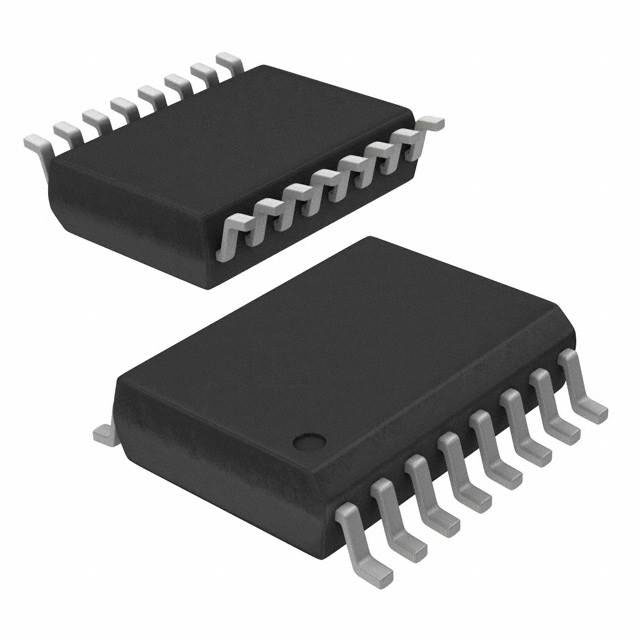

| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Voltage - Supply | 3V ~ 5.5V |
| Number of Channels | 4 |
| Base Product Number | IL 717 |
| Voltage - Isolation | 6000Vrms |
| Operating Temperature | -40°C ~ 125°C |
| Inputs - Side 1/Side 2 | 3/1 |
| Rise / Fall Time (Typ) | 1ns, 1ns |
| Supplier Device Package | 16-SOIC |
| Pulse Width Distortion (Max) | 3ns |
| Propagation Delay tpLH / tpHL (Max) | 15ns, 15ns |
| Common Mode Transient Immunity (Min) | 100kV/µs |
