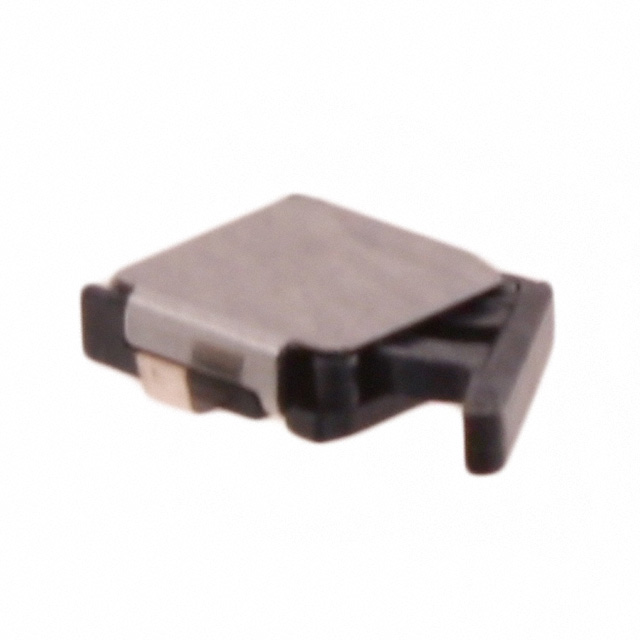

Series
D3SH
Circuit
SPST-NO
Features
Right Operating Lever
Packaging
Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Limit Switches |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | D3SH |
| Circuit | SPST-NO |
| Features | Right Operating Lever |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel® |
| Pretravel | - |
| Overtravel | - |
| Part Status | Active |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Actuator Type | Angled Toggle (Detector) |
| Mounting Type | Surface Mount, Right Angle |
| Release Force | - |
| Electrical Life | 100,000 Cycles |
| Mechanical Life | 150,000 Cycles |
| Operating Force | 31gf |
| Switch Function | Off-Mom |
| Termination Style | SMD (SMT) Tab |
| Ingress Protection | - |
| Operating Position | 0.197" (5.0mm) |
| Base Product Number | D3SH |
| Differential Travel | - |
| Voltage Rating - DC | 5 V |
| Current Rating (Amps) | 1mA (DC) |
| Operating Temperature | -25°C ~ 85°C |
