Series
PULSEJACK™ JV
Features
Board Guide
LED Color
Does Not Contain LED
Packaging
Tray
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|

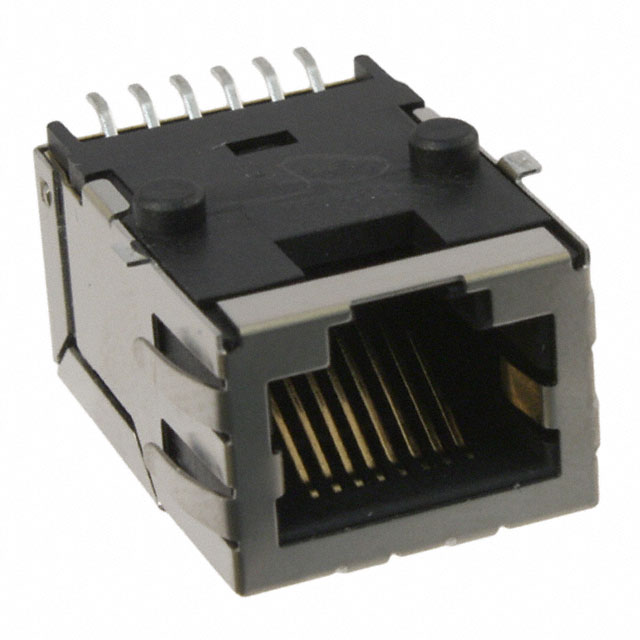

| Category | Modular/Ethernet Connector (RJ45) Jacks With Magnetics |
| Manufacturer | Pulse Electronics |
| Series | PULSEJACK™ JV |
| Features | Board Guide |
| LED Color | Does Not Contain LED |
| Packaging | Tray |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Part Status | Active |
| Termination | Solder |
| Applications | 10/100 Base-TX, AutoMDIX |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Tab Direction | Down |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Number of Rows | 1 |
| Number of Ports | 1 |
| Shield Material | Brass |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| Height Above Board | 0.507" (12.88mm) |
| Operating Temperature | 0°C ~ 70°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Cores per Jack | 4 |
Package
-
MSL
-
