Data Rate
1Mbps
Packaging
Tube
Input Type
DC
Output Type
Open Collector
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Logic Output Optoisolators |
| Manufacturer | Renesas Electronics Corporation |
| Series | - |
| Data Rate | 1Mbps |
| Packaging | Tube |
| Input Type | DC |
| Output Type | Open Collector |
| Part Status | Active |
| Manufacturer | Renesas Electronics Corporation |
| Mounting Type | Surface Mount |

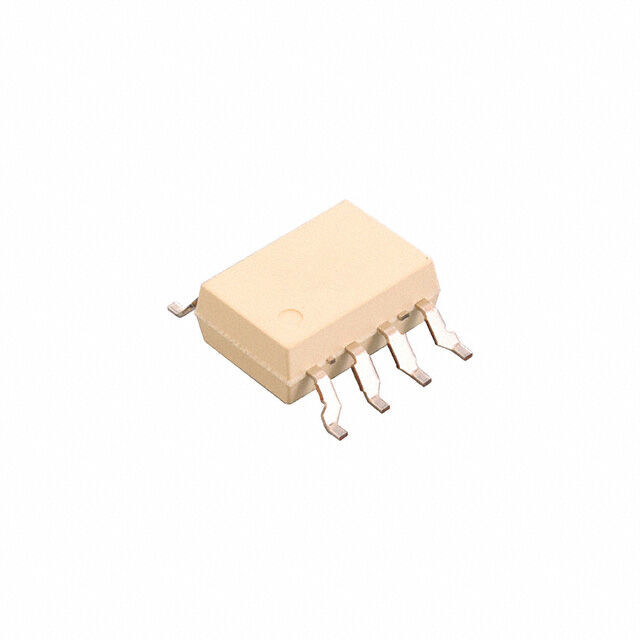

| Package / Case | 8-SMD, Gull Wing |
| Voltage - Supply | 4.5V ~ 20V |
| Number of Channels | 1 |
| Base Product Number | PS9513 |
| Voltage - Isolation | 5000Vrms |
| Operating Temperature | -40°C ~ 100°C |
| Inputs - Side 1/Side 2 | 1/0 |
| Rise / Fall Time (Typ) | - |
| Supplier Device Package | 8-SMD |
| Current - Output / Channel | 15 mA |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Current - DC Forward (If) (Max) | 25mA |
| Propagation Delay tpLH / tpHL (Max) | 750ns, 500ns |
| Common Mode Transient Immunity (Min) | 15kV/µs |
