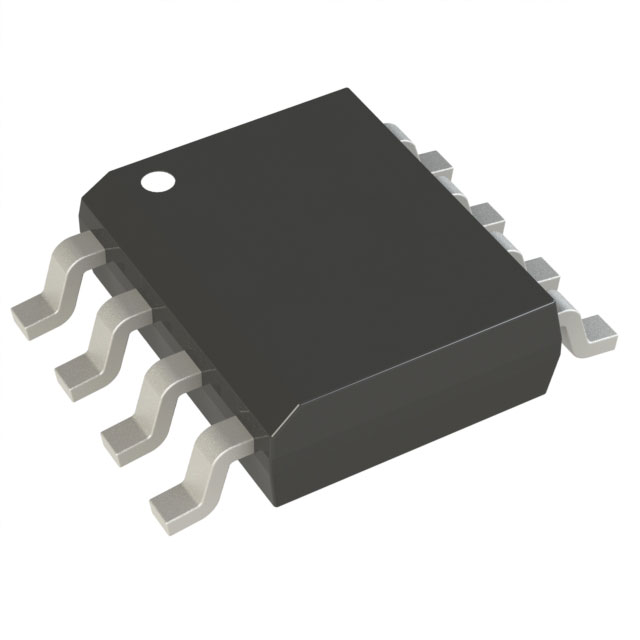

RoHS / ComplianceImages are for reference only
Series
TrenchFET®
Packaging
Tape & Reel (TR)
Technology
MOSFET (Metal Oxide)
FET Feature
Logic Level Gate
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | FET, MOSFET Arrays |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Logic Level Gate |
| Part Status | Obsolete |
| Power - Max | 2.4W |
| Manufacturer | Vishay Siliconix |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Base Product Number | SI9945 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 80mOhm @ 3.7A, 10V |
| Supplier Device Package | 8-SOIC |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V |
| Drain to Source Voltage (Vdss) | 60V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Current - Continuous Drain (Id) @ 25°C | 3.7A |
