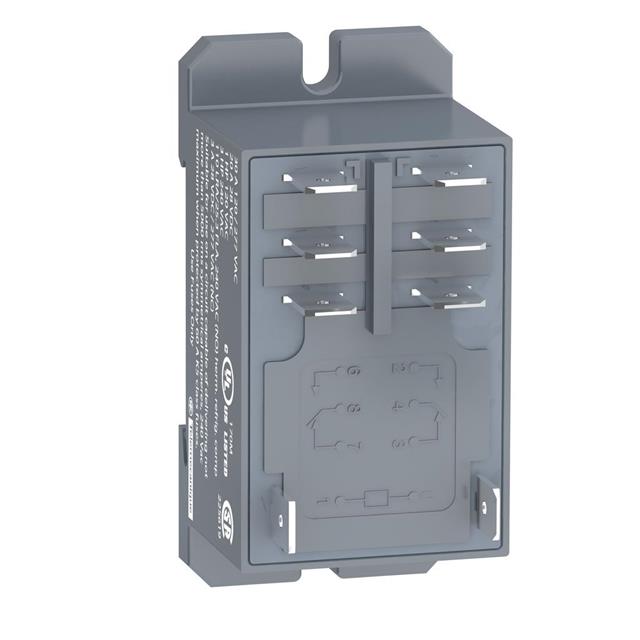

| Parameter | Value |
|---|---|
| Category | Power Relays, Over 2 Amps |
| Manufacturer | Schneider Electric |
| Grade | - |
| Series | Harmony |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Box |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | - |
| Coil Current | 68.6 mA |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Mounting Type | Chassis Mount |
| Qualification | - |
| Approval Agency | CE, CSA, GOST, UL |
| Coil Insulation | - |
| Coil Resistance | 350 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 250VAC, 28VDC - Max |
| Termination Style | Quick Connect - Multiple Sizes |
| Base Product Number | RPF2B |
| Load - Max Switching | 6250VA, 700W |
| Must Operate Voltage | - |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 55°C |
| Contact Rating (Current) | 25 A |
