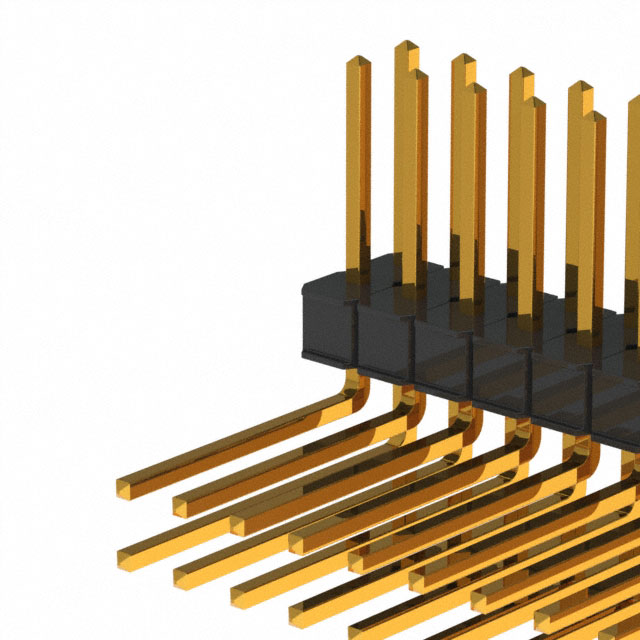

| Parameter | Value |
|---|---|
| Category | Headers, Male Pins |
| Manufacturer | 3M |
| Style | Board to Board |
| Series | 929 |
| Features | - |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.215" (5.45mm) |
| Ingress Protection | - |
| Base Product Number | 929745 |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Number of Positions | 44 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.405" (10.29mm) |
| Current Rating (Amps) | 2.5A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.318" (8.08mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
