Crosstalk
-100dB @ 1MHz
Packaging
Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
Part Status
Active
Manufacturer
Analog Devices Inc.
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Analog Switches, Multiplexers, Demultiplexers |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Crosstalk | -100dB @ 1MHz |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel® |
| Part Status | Active |
| Manufacturer | Analog Devices Inc. |
| Mounting Type | Surface Mount |
| -3db Bandwidth | 170MHz |

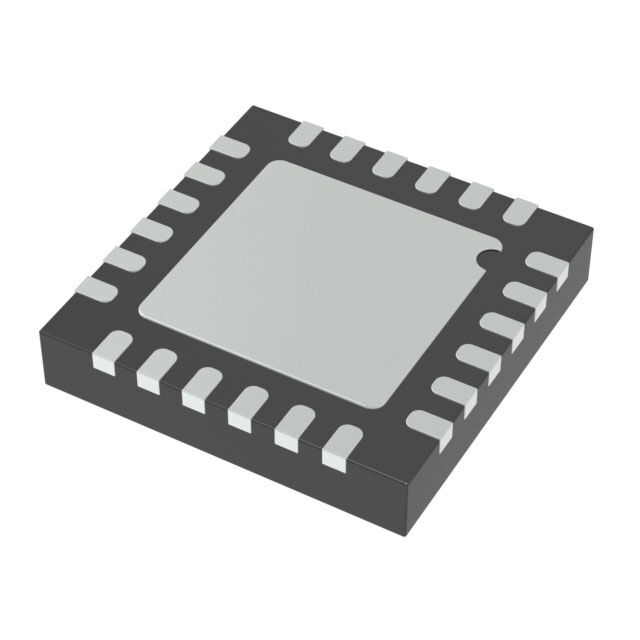

| Package / Case | 24-VFQFN Exposed Pad, CSP |
| Switch Circuit | SPST - NO |
| Charge Injection | -20pC |
| Number of Circuits | 4 |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 24-LFCSP (4x4) |
| On-State Resistance (Max) | 1.8Ohm |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 133ns, 200ns |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Current - Leakage (IS(off)) (Max) | 550pA |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Channel Capacitance (CS(off), CD(off)) | 22pF, 23pF |
