Series
PolyPhase®
Function
Step-Down
Topology
Buck
Packaging
Tube
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | DC DC Switching Controllers |
| Manufacturer | Analog Devices Inc. |
| Series | PolyPhase® |
| Function | Step-Down |
| Topology | Buck |
| Packaging | Tube |
| Clock Sync | No |
| Output Type | PWM Signal |
| Part Status | Active |
| Manufacturer | Analog Devices Inc. |
| Mounting Type | Surface Mount |
| Output Phases | 2 |

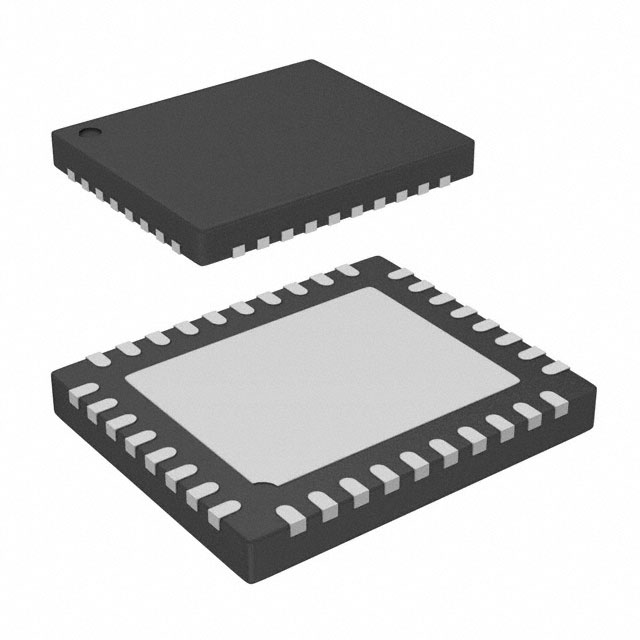

| Package / Case | 36-WFQFN Exposed Pad |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking |
| Duty Cycle (Max) | 91.5% |
| Number of Outputs | 2 |
| Serial Interfaces | - |
| Base Product Number | LTC3861 |
| Output Configuration | Positive |
| Frequency - Switching | 250kHz ~ 3MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Synchronous Rectifier | No |
| Supplier Device Package | 36-QFN (5x6) |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
