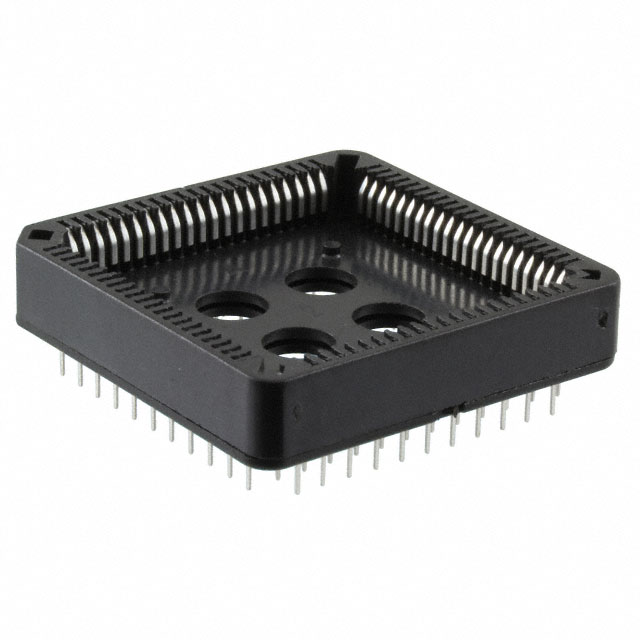

Type
PLCC
Features
Closed Frame
Packaging
Tube
Part Status
Active
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | IC Sockets |
| Manufacturer | Assmann WSW Components |
| Type | PLCC |
| Series | - |
| Features | Closed Frame |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Assmann WSW Components |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Pitch - Mating | 0.050" (1.27mm) |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Contact Resistance | 15mOhm |
| Base Product Number | A-CCS 08 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Material - Post | Phosphor Bronze |
| Termination Post Length | 0.132" (3.35mm) |
| Contact Material - Mating | Phosphor Bronze |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 160.0µin (4.06µm) |
| Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
| Number of Positions or Pins (Grid) | 84 (4 x 21) |
