Style
Board to Board
Series
A-SL254
Features
Board Guide, Pick and Place
Packaging
Tape & Reel (TR)
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling

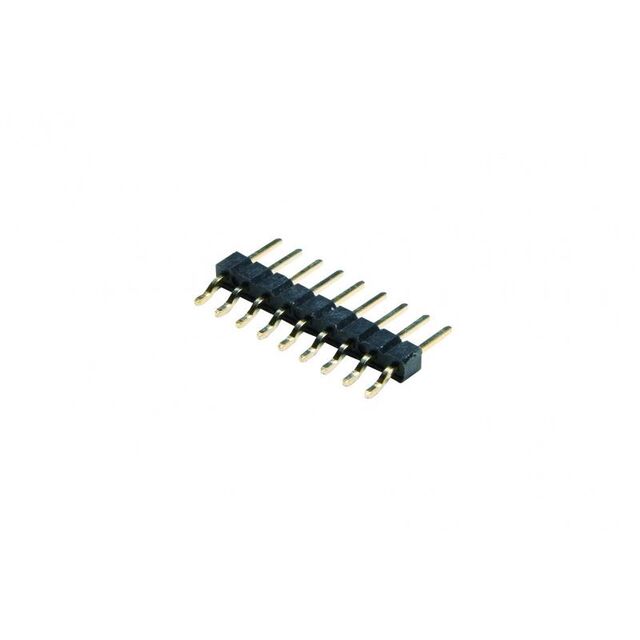

| Parameter | Value |
|---|---|
| Category | Headers, Male Pins |
| Manufacturer | Assmann WSW Components |
| Style | Board to Board |
| Series | A-SL254 |
| Features | Board Guide, Pick and Place |
| Packaging | Tape & Reel (TR) |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header, Cuttable |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.136" (3.46mm) |
| Ingress Protection | - |
| Insulation Material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Number of Positions | 22 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.230" (5.84mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash |
