Series
MagJack®
Features
Board Guide, Decoupling Capacitance, Light Pipe
LED Color
Orange, Green - Yellow
Packaging
Tray
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|

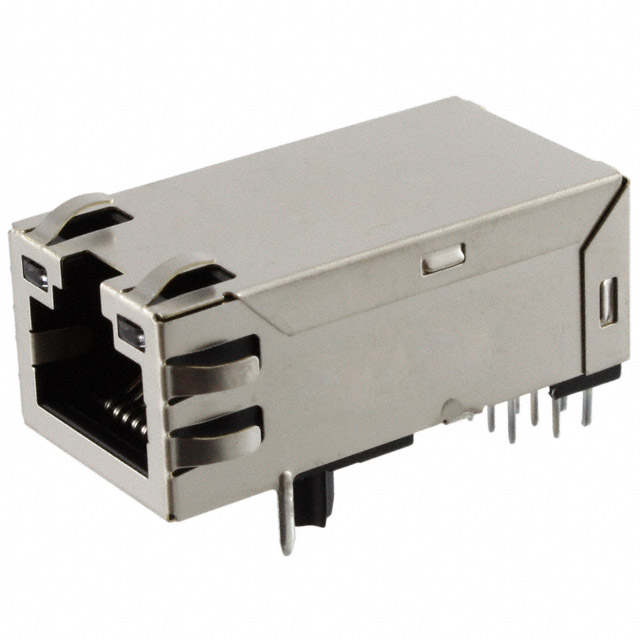

| Category | Modular/Ethernet Connector (RJ45) Jacks With Magnetics |
| Manufacturer | Bel Fuse Inc. |
| Series | MagJack® |
| Features | Board Guide, Decoupling Capacitance, Light Pipe |
| LED Color | Orange, Green - Yellow |
| Packaging | Tray |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Part Status | Active |
| Termination | Solder |
| Applications | 2.5G Base-T, AutoMDIX, Power over Ethernet (PoE) |
| Manufacturer | Bel Fuse Inc. |
| Mounting Type | Board Edge, Through Hole |
| Tab Direction | Up |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Number of Rows | 1 |
| Number of Ports | 1 |
| Shield Material | Brass |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| Height Above Board | 0.536" (13.61mm) |
| Base Product Number | 2250331 |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Number of Cores per Jack | 8 |
