Speed
Small Signal =< 200mA (Io), Any Speed
Series
BAT54-HF
Packaging
Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
Technology
Schottky
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Diode Arrays |
| Manufacturer | Comchip Technology |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Series | BAT54-HF |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel® |
| Technology | Schottky |
| Part Status | Active |
| Manufacturer | Comchip Technology |
| Mounting Type | Surface Mount |

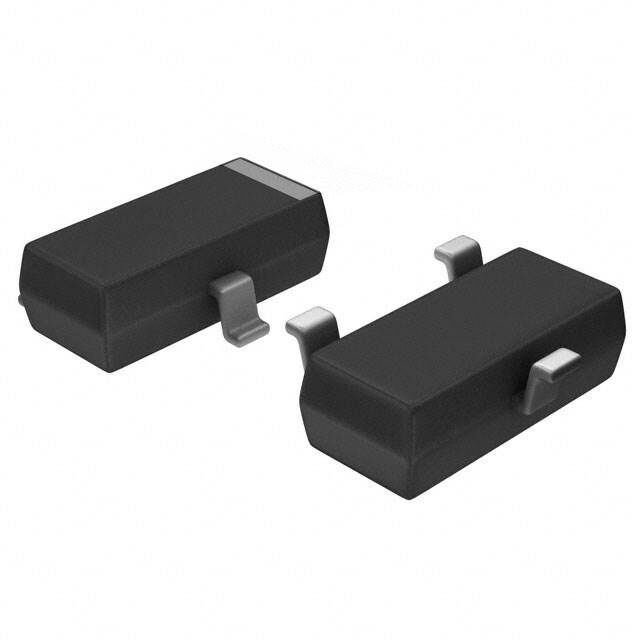

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | BAT54 |
| Diode Configuration | 1 Pair Common Cathode |
| Supplier Device Package | SOT-23-3 |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Current - Average Rectified (Io) (per Diode) | 200mA |
