| Parameter | Value |
|---|---|

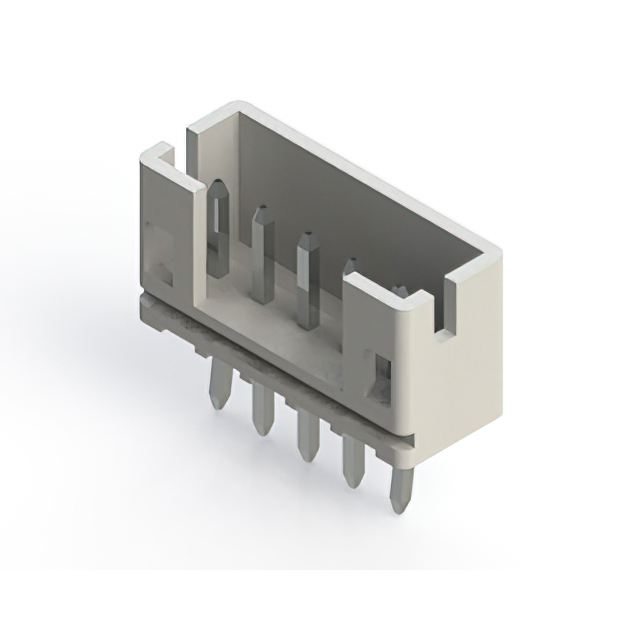

| Category | Headers, Male Pins |
| Manufacturer | EDAC Inc. |
| Style | Board to Cable/Wire |
| Series | 140 |
| Features | - |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 100VAC/DC |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.240" (6.10mm) |
| Ingress Protection | - |
| Base Product Number | 140-505 |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 5 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.134" (3.40mm) |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
