IGBT Type
NPT
Packaging
Tube
Input Type
Standard
Gate Charge
30 nC
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Single IGBTs |
| Manufacturer | Fairchild Semiconductor |
| Series | - |
| IGBT Type | NPT |
| Packaging | Tube |
| Input Type | Standard |
| Gate Charge | 30 nC |
| Part Status | Obsolete |
| Power - Max | 104 W |
| Manufacturer | Fairchild Semiconductor |
| Mounting Type | Through Hole |

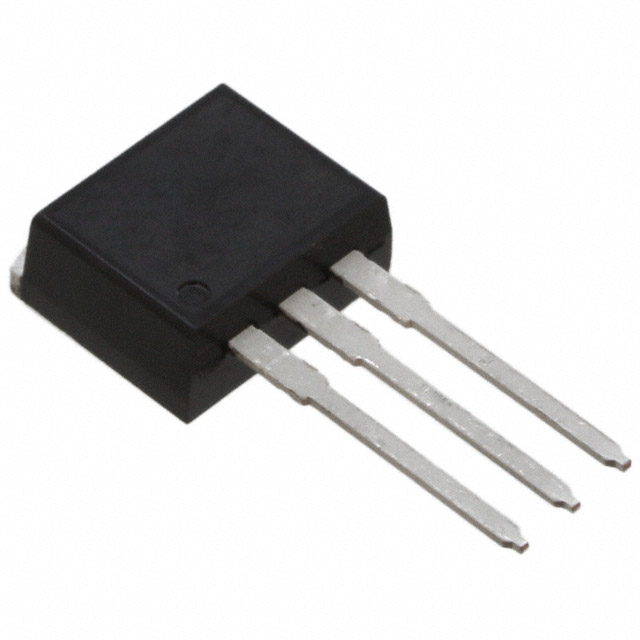

| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Test Condition | 960V, 2.6A, 51Ohm, 15V |
| Switching Energy | 96µJ (on), 355µJ (off) |
| Td (on/off) @ 25°C | 25ns/205ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Supplier Device Package | TO-262 |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 2.6A |
| Current - Collector (Ic) (Max) | 13 A |
| Current - Collector Pulsed (Icm) | 20 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
