Gap
Ungapped
Width
0.106" (2.70mm)
Finish
Uncoated
Height
0.216" (5.50mm)
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling

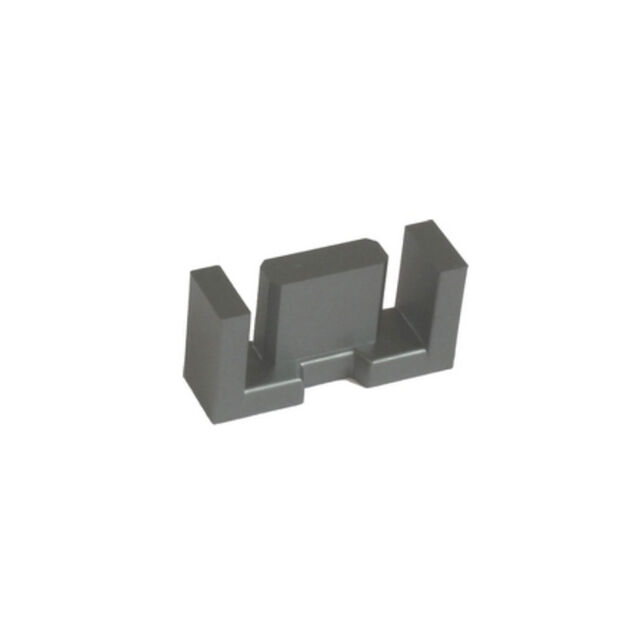

| Parameter | Value |
|---|---|
| Category | Ferrite Cores |
| Manufacturer | Ferroxcube |
| Gap | Ungapped |
| Width | 0.106" (2.70mm) |
| Finish | Uncoated |
| Height | 0.216" (5.50mm) |
| Length | 0.059" (1.50mm) |
| Series | - |
| Diameter | - |
| Material | 3C96 |
| Core Type | EFD |
| Packaging | Bulk |
| Tolerance | ±25% |
| Part Status | Active |
| Manufacturer | Ferroxcube |
| Supplier Device Package | EFD 10 x 5 x 3 |
| Effective Area (Ae) mm² | 7.2 |
| Effective Length (le) mm | 23.7 |
| Core Factor (ΣI/A) mm⁻¹ | 3.29 |
| Effective Permeability (µe) | 1380.0 |
| Effective Magnetic Volume (Ve) mm³ | 171.0 |
| Minimum Core Cross Section (Amin) mm² | 6.5 |
