| Parameter | Value |
|---|---|
| Category | Full Half-Bridge (H Bridge) Drivers |
| Manufacturer | Infineon Technologies |
| Series | - |
| Features | - |
| Interface | SPI |
| Load Type | Inductive |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel® |
| Technology | Power MOSFET |
| Part Status | Obsolete |
| Applications | AC Motors, DC Motors, General Purpose |
| Manufacturer | Infineon Technologies |
| Rds On (Typ) | 850mOhm LS, 850mOhm HS |
| Mounting Type | Surface Mount |

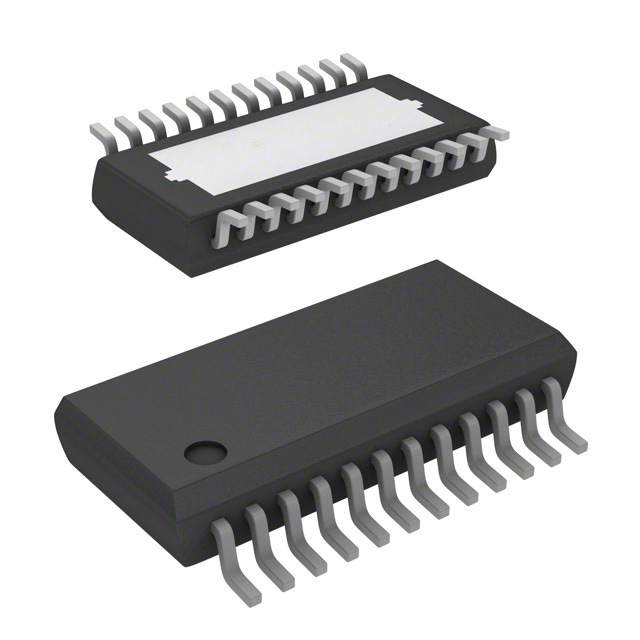

| Package / Case | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Voltage - Load | 5.5V ~ 20V |
| Fault Protection | Over Temperature, Short Circuit, UVLO |
| Voltage - Supply | 3V ~ 5.5V |
| Base Product Number | TLE94112 |
| Output Configuration | Half Bridge (12) |
| Current - Peak Output | 2A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | PG-SSOP-24-4 |
| Current - Output / Channel | 500mA |
