Gate Type
IGBT, MOSFET (N-Channel, P-Channel)
Packaging
Tube
Input Type
Inverting
Part Status
Active
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Gate Drivers |
| Manufacturer | Microchip Technology |
| Series | - |
| Gate Type | IGBT, MOSFET (N-Channel, P-Channel) |
| Packaging | Tube |
| Input Type | Inverting |
| Part Status | Active |
| Channel Type | Independent |
| Manufacturer | Microchip Technology |
| Mounting Type | Surface Mount |

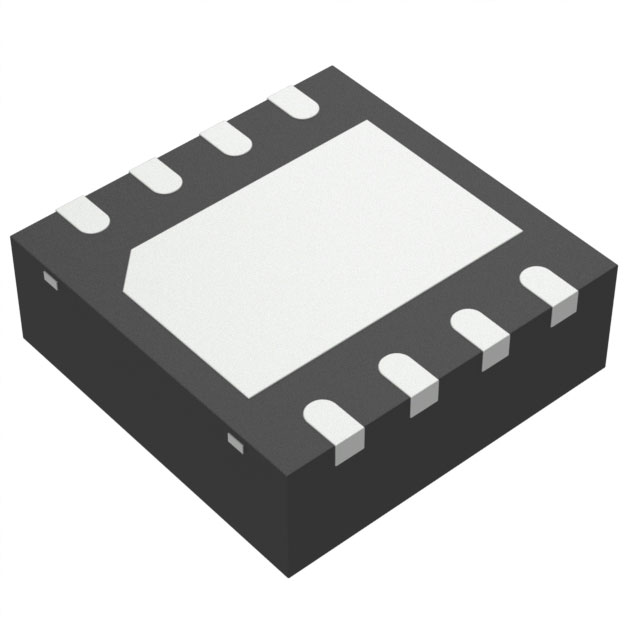

| Package / Case | 8-VDFN Exposed Pad |
| Voltage - Supply | 4.5V ~ 18V |
| Number of Drivers | 2 |
| Base Product Number | MCP14E3 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Low-Side |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rise / Fall Time (Typ) | 15ns, 18ns |
| Supplier Device Package | 8-DFN-S (6x5) |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
Package
-
MSL
-
