Series
2801
Packaging
Bulk
Insulation
Non-Insulated
Part Status
Active
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|

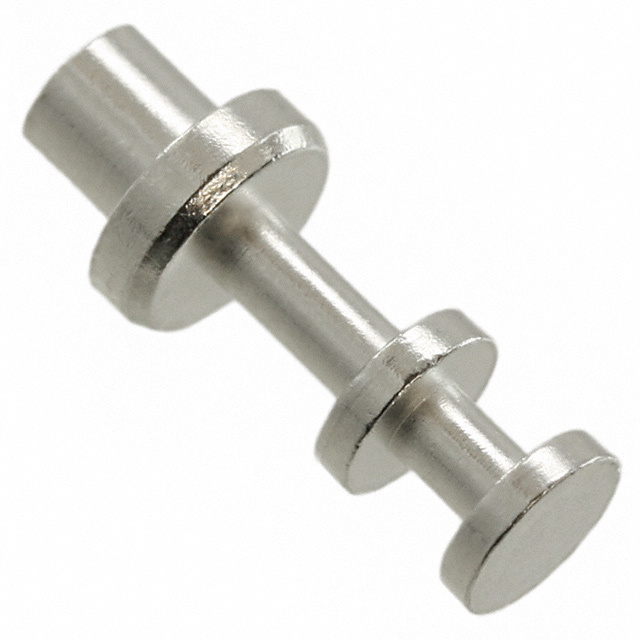

| Category | Turret Connectors |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 2801 |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Part Status | Active |
| Termination | Swage |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Mounting Type | Through Hole |
| Terminal Type | Single End |
| Contact Finish | Silver |
| Board Thickness | 0.062" (1.57mm) |
| Flange Diameter | 0.187" (4.75mm) |
| Staking Side ID | 0.078" (1.98mm) |
| Staking Side OD | 0.112" (2.84mm) |
| Contact Material | Brass Alloy |
| Insulation Color | - |
| Length - Overall | 0.469" (11.90mm) |
| Number of Turrets | Single |
| Base Product Number | 2801-2 |
| Length - Above Board | 0.360" (9.14mm) |
| Length - Below Flange | 0.109" (2.77mm) |
| Material - Insulation | - |
| Diameter - Turret Head | 0.145" (3.68mm) |
| Mounting Hole Diameter | 0.116" (2.95mm) |
| Contact Finish Thickness | 300.0µin (7.62µm) |
