Series
UBW
Impedance
130 mOhms
Packaging
Cut Tape (CT) || Tape & Box (TB)
Tolerance
±20%
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|

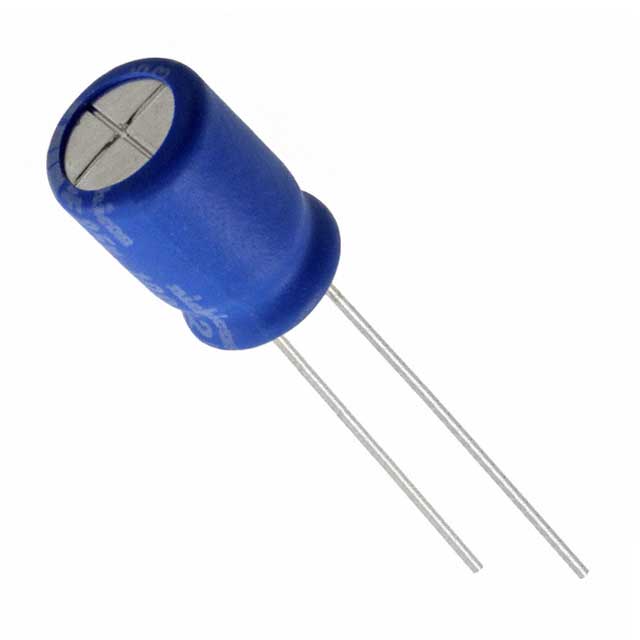

| Category | Aluminum Electrolytic Capacitors |
| Manufacturer | Nichicon |
| Series | UBW |
| Ratings | - |
| Impedance | 130 mOhms |
| Packaging | Cut Tape (CT) || Tape & Box (TB) |
| Tolerance | ±20% |
| Capacitance | 100 µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | 0.138" (3.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 25 V |
| Lifetime @ Temp. | 1000 Hrs @ 135°C |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Operating Temperature | -55°C ~ 135°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| ESR (Equivalent Series Resistance) | - |
Package
-
MSL
-
