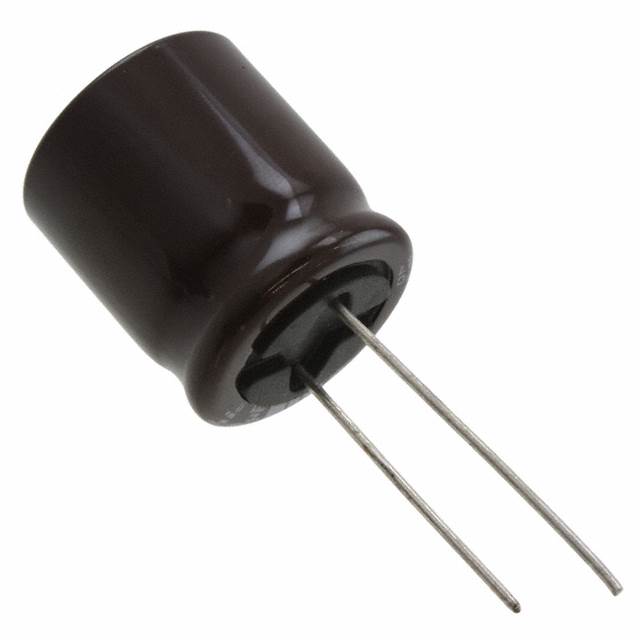

| Parameter | Value |
|---|---|
| Category | Aluminum Electrolytic Capacitors |
| Manufacturer | Nichicon |
| Series | UPM |
| Ratings | AEC-Q200 |
| Impedance | 39 mOhms |
| Packaging | Cut Tape (CT) || Tape & Box (TB) |
| Tolerance | ±20% |
| Capacitance | 560 µF |
| Part Status | Not For New Designs |
| Applications | Automotive |
| Lead Spacing | 0.295" (7.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 63 V |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 1.41 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.73 A @ 10 kHz |
| ESR (Equivalent Series Resistance) | - |
