Series
UPW
Impedance
55 mOhms
Packaging
Cut Tape (CT) || Tape & Box (TB)
Tolerance
±20%
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|

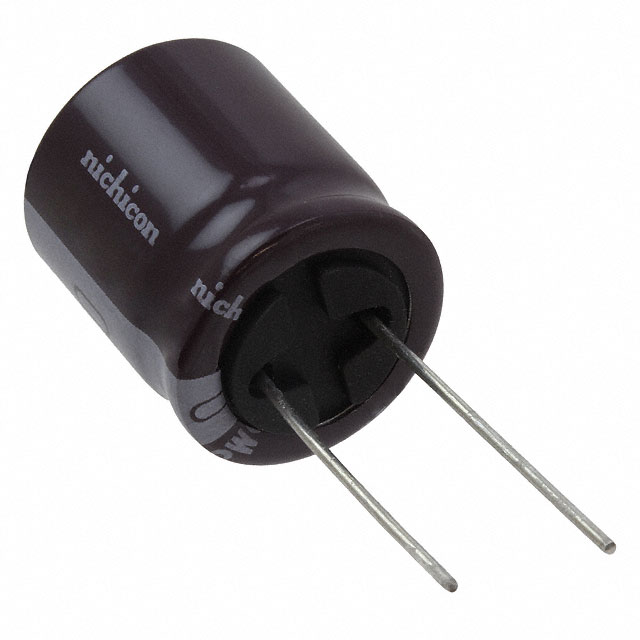

| Category | Aluminum Electrolytic Capacitors |
| Manufacturer | Nichicon |
| Series | UPW |
| Ratings | - |
| Impedance | 55 mOhms |
| Packaging | Cut Tape (CT) || Tape & Box (TB) |
| Tolerance | ±20% |
| Capacitance | 680 µF |
| Part Status | Not For New Designs |
| Applications | General Purpose |
| Lead Spacing | 0.295" (7.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 63 V |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 1.718 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.29 A @ 100 kHz |
| ESR (Equivalent Series Resistance) | - |
Package
-
MSL
-
