Series
JW
Circuit
DPST
Packaging
Box
Part Status
Active
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling

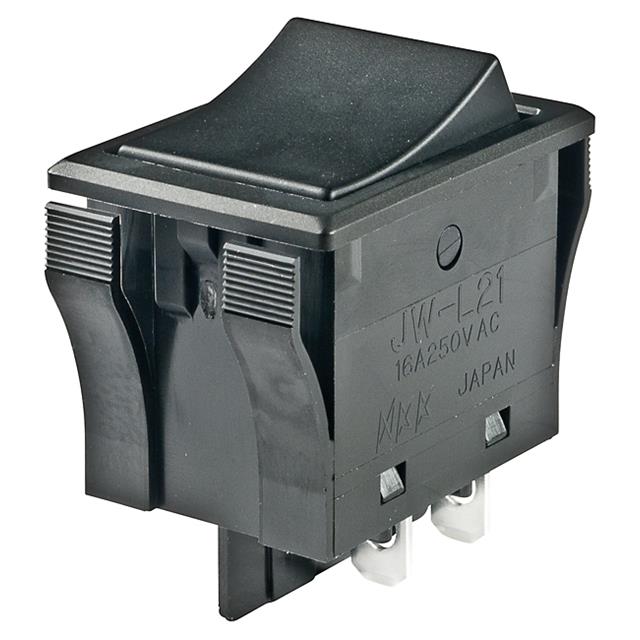

| Parameter | Value |
|---|---|
| Category | Rocker Switches |
| Manufacturer | NKK Switches |
| Series | JW |
| Circuit | DPST |
| Features | - |
| Packaging | Box |
| Part Status | Active |
| Actuator Type | Concave (Curved) |
| Mounting Type | Panel Mount, Snap-In |
| Approval Agency | CSA, UL, VDE |
| Electrical Life | 25,000 Cycles |
| Mechanical Life | 25,000 Cycles |
| Switch Function | On-Off |
| Actuator Marking | No Marking |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) |
| Ingress Protection | Dust Proof |
| Base Product Number | JWL21R |
| Voltage Rating - AC | 125 V |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16A (AC) |
| Operating Temperature | -25°C ~ 70°C |
| Panel Cutout Dimensions | Rectangular - 29.50mm x 20.50mm |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
