| Parameter | Value |
|---|---|
| Category | AC DC Converters, Offline Switchers |
| Manufacturer | onsemi |
| Series | - |
| Topology | Half-Bridge |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel® |
| Duty Cycle | 50% |
| Part Status | Active |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |

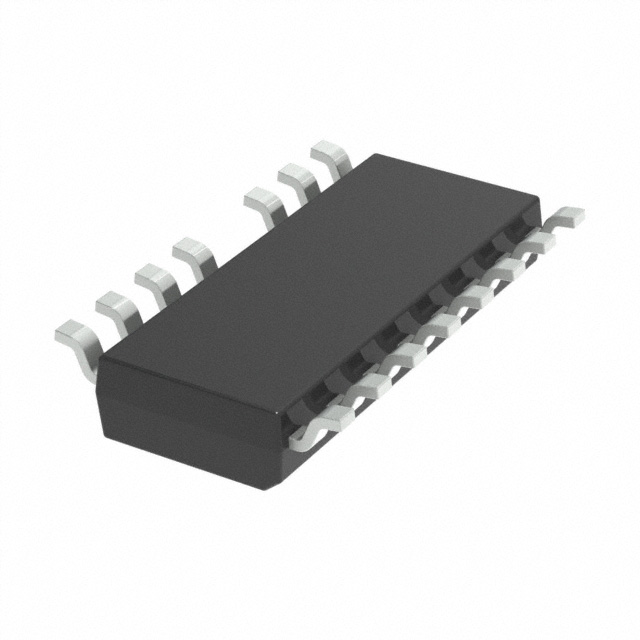

| Package / Case | 16-SOIC (0.154", 3.90mm Width), 15 Leads |
| Control Features | Frequency Control, Soft Start |
| Fault Protection | Over Temperature |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Start Up | 10.5 V |
| Base Product Number | NCP1396 |
| Voltage - Breakdown | - |
| Frequency - Switching | 50kHz ~ 500kHz |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 20V |
