FET Type
N-Channel
Packaging
Tube
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Single FETs, MOSFETs |
| Manufacturer | onsemi |
| Grade | - |
| Series | - |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Qualification | - |

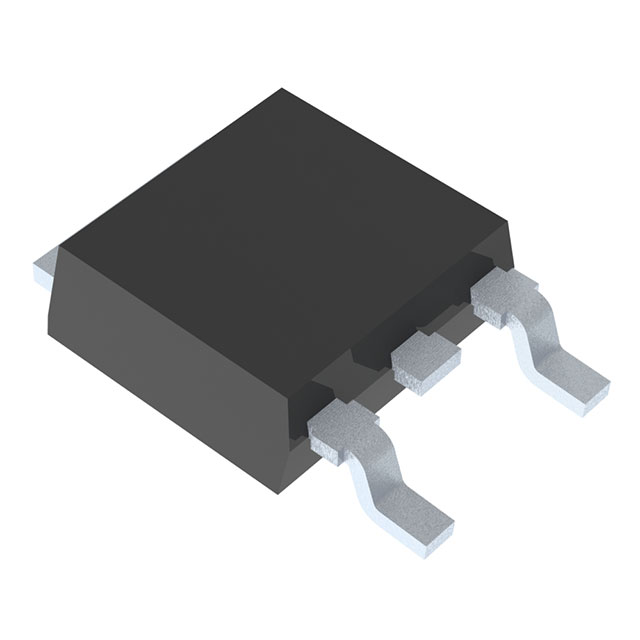

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Base Product Number | NTD80 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 5.8mOhm @ 80A, 10V |
| Power Dissipation (Max) | 75W (Tc) |
| Supplier Device Package | DPAK |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 4.5 V |
| Drain to Source Voltage (Vdss) | 24 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2600 pF @ 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
