Type
Plug, Female Sockets
Color
Green
Pitch
0.138" (3.50mm)
Series
COMBICON DFMC
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling

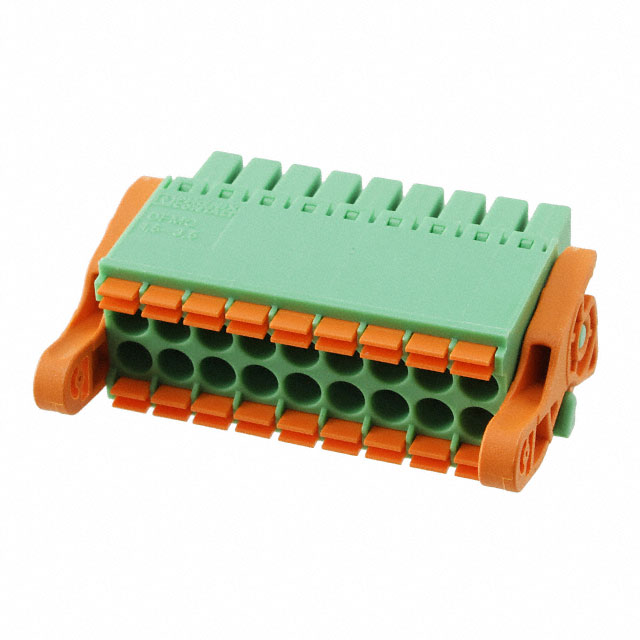

| Parameter | Value |
|---|---|
| Category | Headers, Plugs and Sockets |
| Manufacturer | Phoenix Contact |
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.138" (3.50mm) |
| Series | COMBICON DFMC |
| Features | Ejector Latches |
| Packaging | Bulk |
| Screw Size | - |
| Part Status | Active |
| Current - UL | 8 A |
| Manufacturer | Phoenix Contact |
| Voltage - UL | 150 V |
| Current - IEC | 8A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 250 V |
| Torque - Screw | - |
| Plug Wire Entry | 180° |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon |
| Number of Levels | 2 |
| Insulation Height | 0.522" (13.25mm) |
| Termination Style | Screwless - Push-In Spring |
| Wire Strip Length | 10mm |
| Header Orientation | - |
| Ingress Protection | - |
| Contact Tail Length | - |
| Number of Positions | 18 |
| Positions Per Level | 9 |
| Contact Mating Finish | Tin |
| Operating Temperature | - |
| Wire Gauge or Range - AWG | 16-24 AWG |
| Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Material Flammability Rating | UL94 V-0 |
