Speed
20MHz
Series
H8® H8S/2100
RAM Size
4K x 8
Core Size
16-Bit
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Renesas Electronics Corporation |
| Speed | 20MHz |
| Series | H8® H8S/2100 |
| RAM Size | 4K x 8 |
| Core Size | 16-Bit |
| Packaging | Tray |
| EEPROM Size | - |
| Part Status | Obsolete |
| Peripherals | POR, PWM, WDT |
| Connectivity | IrDA, SCI |
| Mounting Type | Surface Mount |
| Number of I/O | 58 |
| Core Processor | H8S/2000 |

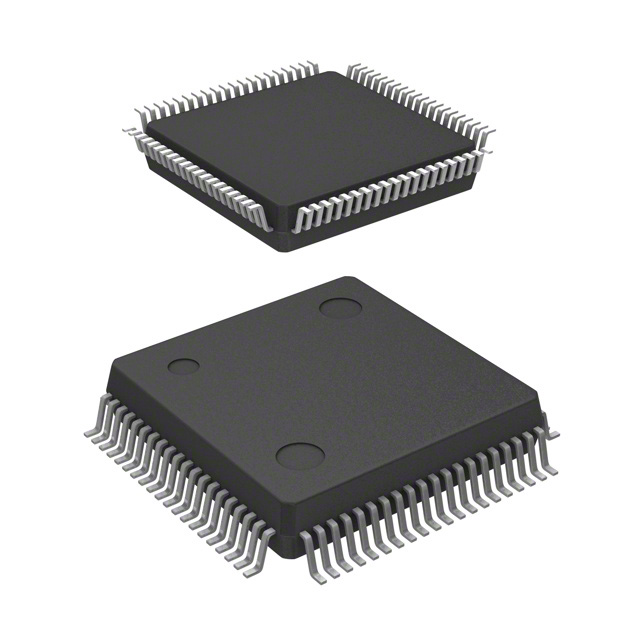

| Package / Case | 80-BQFP |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Base Product Number | DF2134 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Supplier Device Package | 80-QFP (14x14) |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 5.5V |
