RPM
2500 RPM
Noise
29.0dB(A)
Width
25.00mm
Series
CFM-80C
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling

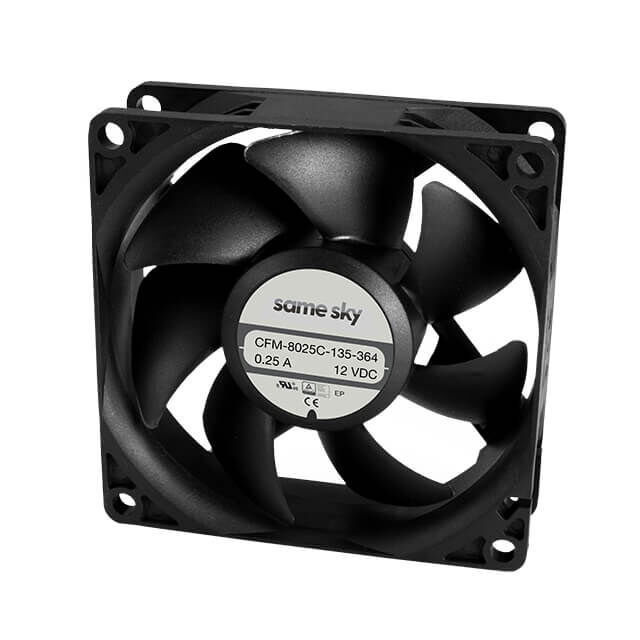

| Parameter | Value |
|---|---|
| Category | DC Brushless Fans (BLDC) |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| RPM | 2500 RPM |
| Noise | 29.0dB(A) |
| Width | 25.00mm |
| Series | CFM-80C |
| Weight | - |
| Air Flow | 30.9 CFM (0.865m³/min) |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Packaging | Box |
| Part Status | Active |
| Termination | 2 Wire Leads |
| Bearing Type | omniCOOL™ Magnetic Sleeve |
| Power (Watts) | 1.44 W |
| Voltage Range | 10.8 ~ 13.2VDC |
| Approval Agency | CE, cURus, TUV |
| Static Pressure | 0.090 in H2O (22.4 Pa) |
| Voltage - Rated | 12VDC |
| Lifetime @ Temp. | 40000 Hrs @ 40°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Size / Dimension | Square - 80mm L x 80mm H |
| Ingress Protection | - |
| Current Rating (Amps) | 0.120A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Package
-
MSL
-
