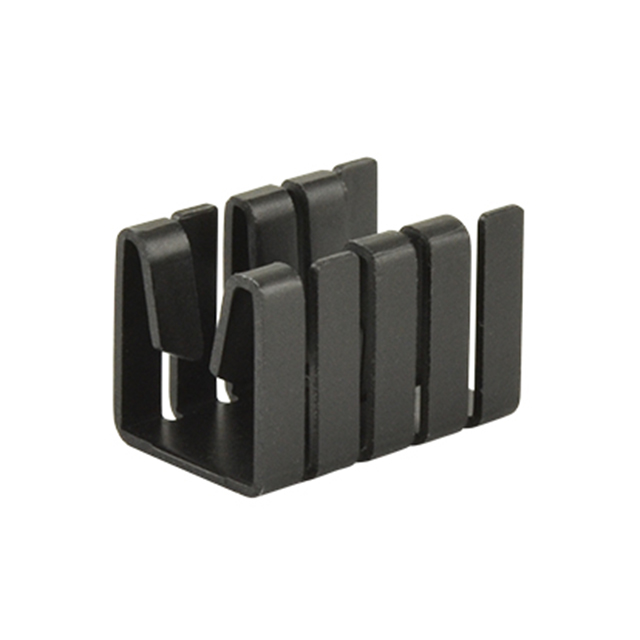

Type
Board Level, Vertical
Shape
Rectangular, Fins
Width
0.504" (12.80mm)
Length
0.500" (12.70mm)
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Heat Sinks |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Type | Board Level, Vertical |
| Shape | Rectangular, Fins |
| Width | 0.504" (12.80mm) |
| Length | 0.500" (12.70mm) |
| Series | HSS |
| Diameter | - |
| Material | Aluminum |
| Packaging | Bag |
| Fin Height | 0.748" (19.00mm) |
| Part Status | Active |
| Package Cooled | TO-220 |
| Material Finish | Black Anodized |
| Attachment Method | PC Pin |
| Base Product Number | HSS-B20 |
| Thermal Resistance @ Natural | 25.92°C/W |
| Power Dissipation @ Temperature Rise | 2.9W @ 75°C |
| Thermal Resistance @ Forced Air Flow | 7.24°C/W @ 200 LFM |
