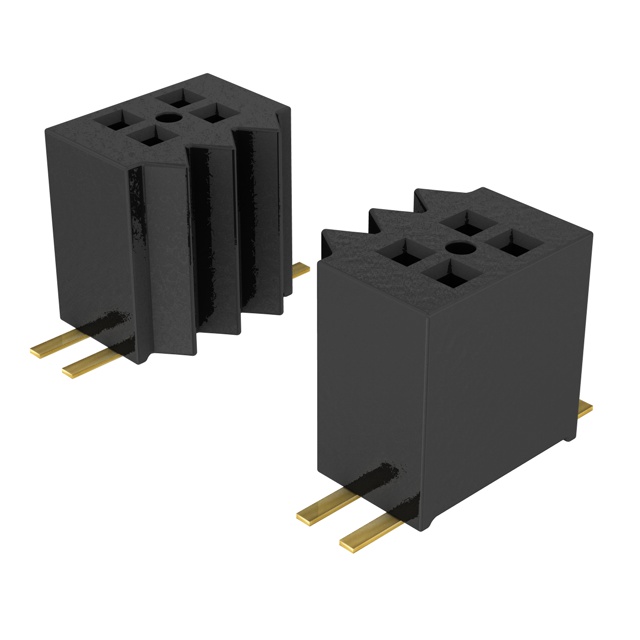

| Parameter | Value |
|---|---|
| Category | Headers, Receptacles, Female Sockets |
| Manufacturer | Samtec Inc. |
| Style | Board to Board |
| Series | CLE |
| Features | - |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Applications | - |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Pass Through |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.031" (0.80mm) |
| Voltage Rating | - |
| Contact Material | Beryllium Copper |
| Insulation Color | Black |
| Insulation Height | 0.130" (3.30mm) |
| Ingress Protection | - |
| Base Product Number | CLE-190 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 180 |
| Row Spacing - Mating | 0.047" (1.20mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | - |
| Current Rating (Amps) | 2.7A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
