Color
Black
Pitch
0.031" (0.80mm)
Gender
Female
Series
Edge Rate™ HSEC8
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling

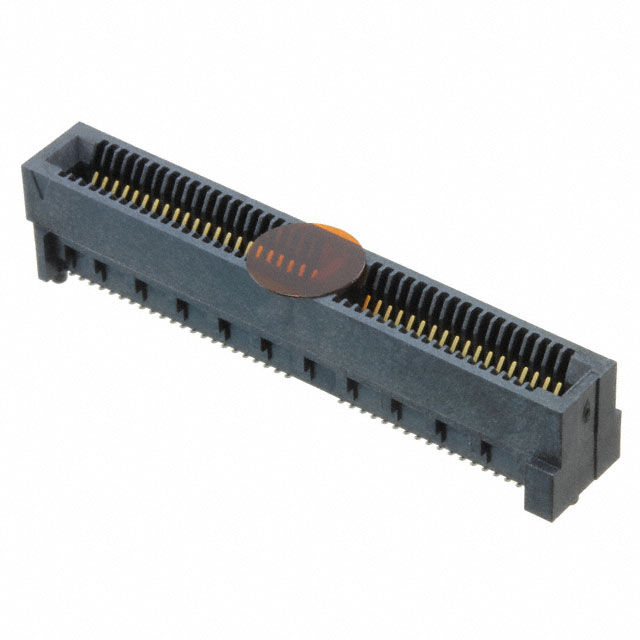

| Parameter | Value |
|---|---|
| Category | Edgeboard Connectors |
| Manufacturer | Samtec Inc. |
| Color | Black |
| Pitch | 0.031" (0.80mm) |
| Gender | Female |
| Series | Edge Rate™ HSEC8 |
| Features | Board Guide, Locking Ramp |
| Read Out | Dual |
| Card Type | Non Specified - Dual Edge |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Cantilever |
| Manufacturer | Samtec Inc. |
| Mounting Type | Surface Mount |
| Card Thickness | 0.062" (1.57mm) |
| Contact Finish | Gold |
| Flange Feature | - |
| Number of Rows | 2 |
| Contact Material | Beryllium Copper |
| Base Product Number | HSEC8-140 |
| Number of Positions | 80 |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions/Bay/Row | 40 |
