Grade
Automotive
Packaging
Tube
Technology
Capacitive Coupling
Part Status
Active
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Isolators - Gate Drivers |
| Manufacturer | Skyworks Solutions Inc. |
| Grade | Automotive |
| Series | - |
| Packaging | Tube |
| Technology | Capacitive Coupling |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q100 |

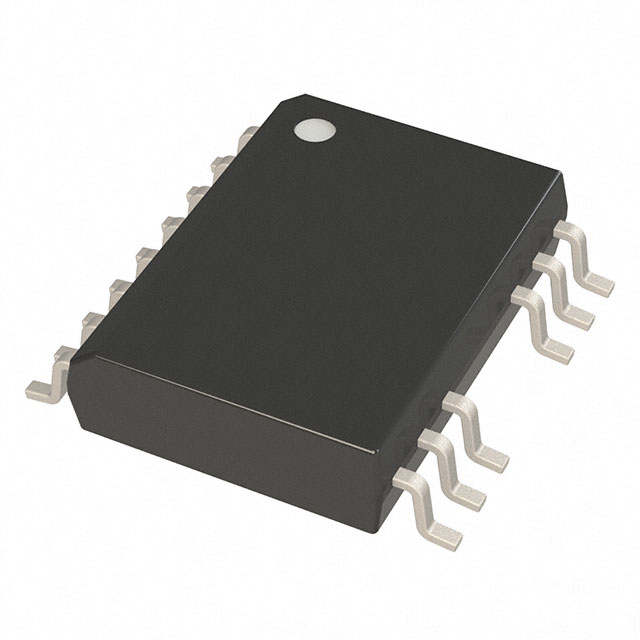

| Package / Case | 14-SOIC (0.295", 7.50mm Width) |
| Approval Agency | CQC, CSA, UR, VDE |
| Number of Channels | 2 |
| Base Product Number | SI82396 |
| Voltage - Isolation | 3250Vrms |
| Current - Peak Output | 4A |
| Operating Temperature | -40°C ~ 125°C |
| Rise / Fall Time (Typ) | 12ns, 12ns (Max) |
| Supplier Device Package | 14-SOIC |
| Voltage - Output Supply | 12.8V ~ 24V |
| Current - Output High, Low | 2A, 4A |
| Pulse Width Distortion (Max) | 5.6ns |
| Voltage - Forward (Vf) (Typ) | - |
| Propagation Delay tpLH / tpHL (Max) | 40ns, 40ns |
| Common Mode Transient Immunity (Min) | 35kV/µs |
