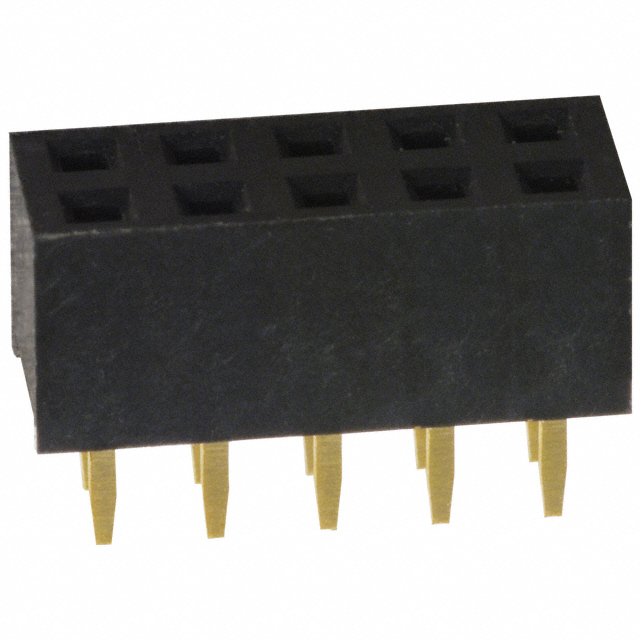

| Parameter | Value |
|---|---|
| Category | Headers, Receptacles, Female Sockets |
| Manufacturer | Sullins Connector Solutions |
| Style | Board to Board |
| Series | - |
| Features | - |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Applications | - |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | - |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.169" (4.30mm) |
| Ingress Protection | - |
| Base Product Number | NPPN052 |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.094" (2.40mm) |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
