Series
ACP
Packaging
Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
Filter Type
Power Line
Part Status
Active
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling

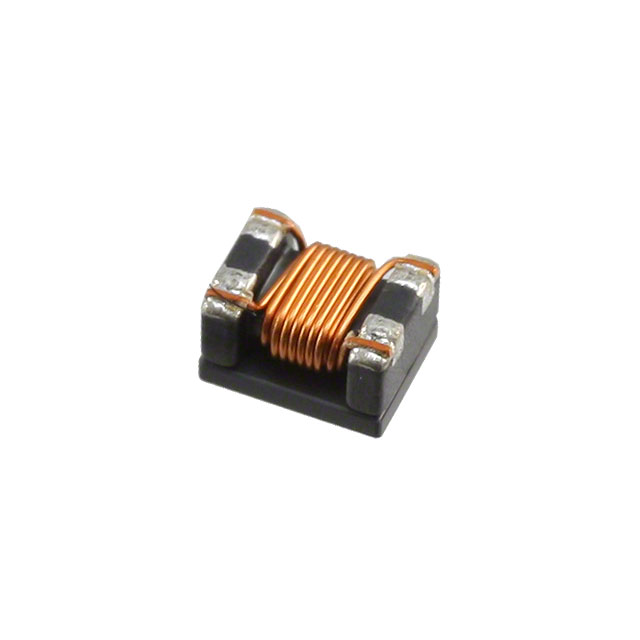

| Parameter | Value |
|---|---|
| Category | Common Mode Chokes |
| Manufacturer | TDK Corporation |
| Series | ACP |
| Ratings | - |
| Features | - |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel® |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 0.079" (2.00mm) |
| Manufacturer | TDK Corporation |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric), 4 Leads |
| Approval Agency | - |
| Number of Lines | 2 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 60V |
| Current Rating (Max) | 1.5A |
| Impedance @ Frequency | 1 kOhms @ 100 MHz |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) (Max) | 50mOhm (Typ) |
