Pitch
0.100" (2.54mm), Full
Length
0.796" (20.22mm)
Series
EDS
Circuit
SPST
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling

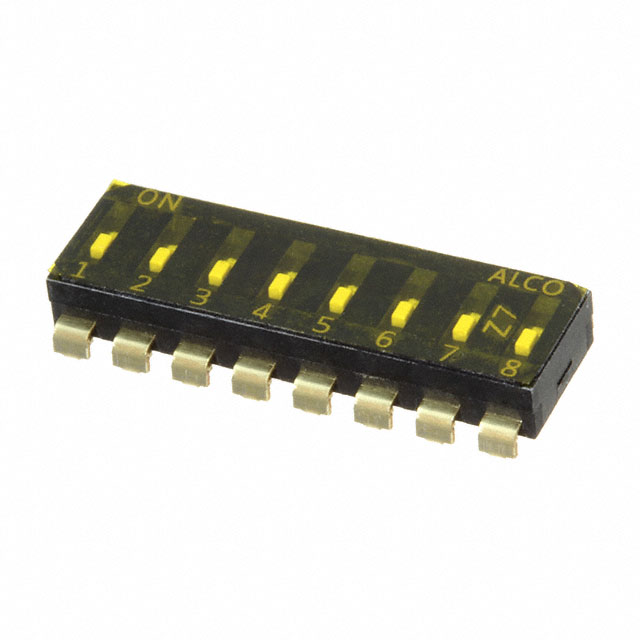

| Parameter | Value |
|---|---|
| Category | DIP Switches |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.796" (20.22mm) |
| Series | EDS |
| Circuit | SPST |
| Features | - |
| Washable | Yes |
| Packaging | Tube |
| Part Status | Active |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Actuator Type | Slide (Standard) |
| Body Material | Polyamide (PA), Nylon |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Electrical Life | 2,000 Cycles |
| Mechanical Life | 2,000 Cycles |
| Contact Material | Copper Alloy |
| Termination Style | J Lead |
| Height Above Board | 0.136" (3.45mm) |
| Base Product Number | EDS08 |
| Number of Positions | 8 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -20°C ~ 85°C |
