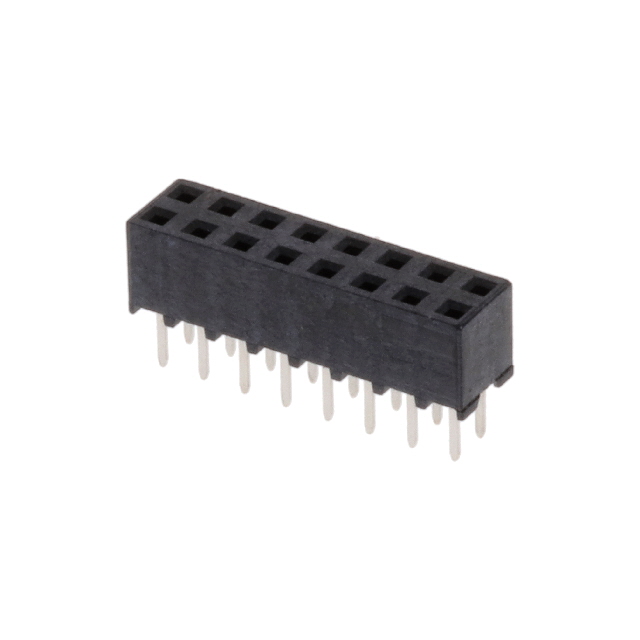

| Parameter | Value |
|---|---|
| Category | Headers, Receptacles, Female Sockets |
| Manufacturer | TE Connectivity AMP Connectors |
| Style | Board to Board |
| Series | AMPMODU |
| Features | - |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Applications | - |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 125V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.177" (4.50mm) |
| Ingress Protection | - |
| Base Product Number | 2314820 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 16 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.106" (2.69mm) |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 125°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) |
