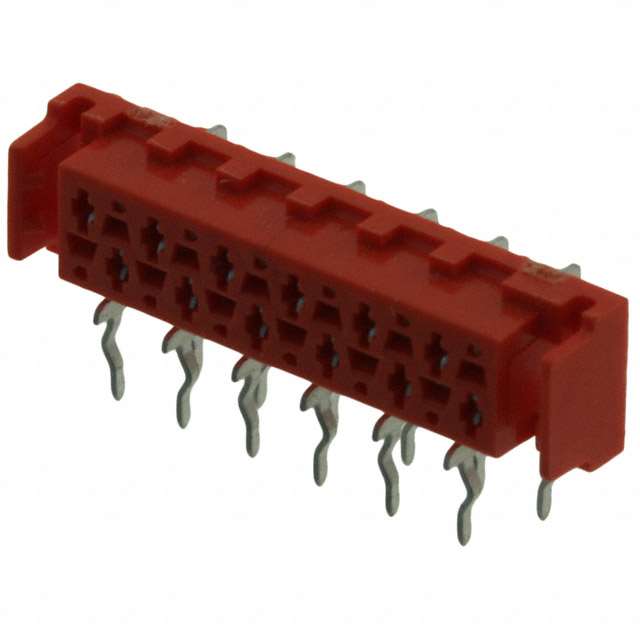

| Parameter | Value |
|---|---|
| Category | Headers, Receptacles, Female Sockets |
| Manufacturer | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | Micro-MaTch |
| Features | - |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Contact Type | Forked |
| Contact Shape | - |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Friction Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 100VDC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Red |
| Insulation Height | 0.228" (5.80mm) |
| Ingress Protection | - |
| Base Product Number | 338070 |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Number of Positions | 12 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.122" (3.10mm) |
| Current Rating (Amps) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
