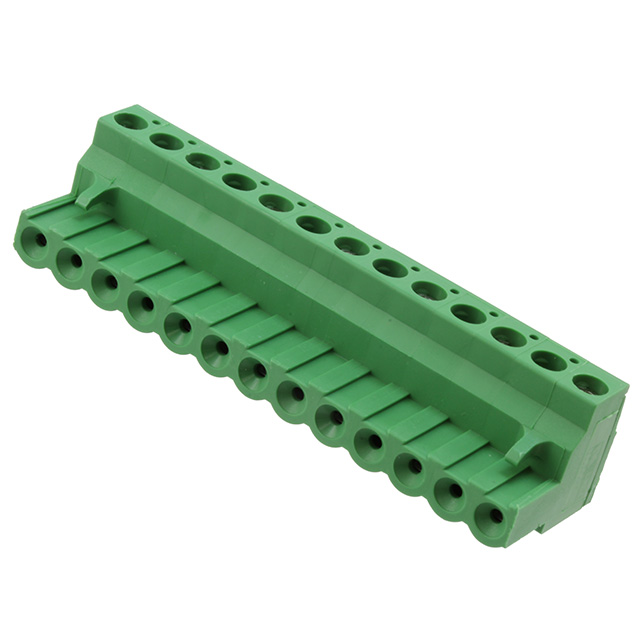

Type
Plug, Female Sockets
Color
Green
Pitch
0.400" (10.16mm)
Series
Buchanan
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Headers, Plugs and Sockets |
| Manufacturer | TE Connectivity AMP Connectors |
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.400" (10.16mm) |
| Series | Buchanan |
| Features | Retention Latches (Non-Wire Side) |
| Packaging | Bulk |
| Screw Size | M3 |
| Part Status | Active |
| Current - UL | 15 A |
| Manufacturer | TE Connectivity AMP Connectors |
| Voltage - UL | 600 V |
| Current - IEC | - |
| Mounting Type | Free Hanging (In-Line) |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) |
| Plug Wire Entry | 180° |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Insulation Height | 0.610" (15.49mm) |
| Termination Style | Screw - Rising Cage Clamp |
| Wire Strip Length | 6-7.5mm |
| Header Orientation | - |
| Ingress Protection | - |
| Base Product Number | 282809 |
| Contact Tail Length | - |
| Number of Positions | 7 |
| Positions Per Level | 7 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 110°C |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.05-3mm² |
| Material Flammability Rating | UL94 V-0 |
